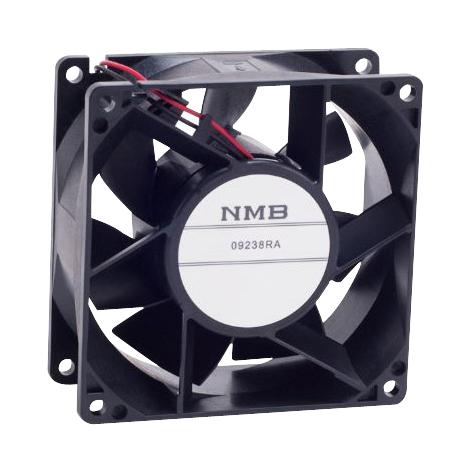

NMB TECHNOLOGIES 09238RE24PGTD0 Industrial Fan
The IP68/69K brushless DC fan by NMB is designed for harsh environments, featuring high ingress protection against dust and water jets, durable stainless steel ball bearings, and open collector tachometer signal output for precise speed monitoring. It offers long lifespan up to 100,000 hours at 25°C, making it ideal for outdoor, industrial, refrigeration, LED lighting, and telecommunication applications. Rated for 24V with an airflow of 141.26 CFM, it ensures reliable cooling performance combined with low noise operation. Its compact design includes plastic casing and impeller with UL94V-0 flame rating, suitable for demanding industrial use.
NMB TECHNOLOGIES 09238RE24PGTD0 Industrial Fan Specifications:
- Motor Type: DC Brushless Motor
- Protection Rating: IP68/69K
- Voltage Range: 14.0V to 27.6V
- Rated Voltage: 24V
- Current: 0.92A (Avg), 1.20A (Max)
- Air Flow: 141.26 CFM
- Static Pressure: 1.04 inH2O (26mmH2O)
- Life Expectancy: 100,000 hours at 25°C
- Material: Plastic casing (UL94V-0), plastic impeller, stainless steel ball bearings
- Dimensions: 92mm x 38mm (body size)
- Tachometer Signal Output: open collector, voltage max +15V, max 5mA
- Temperature Rating: -10°C to +70°C (operating), -40°C to +70°C (storage)
- Protection Class: Dust tight, water jets resistant
- Certifications: UL Listed, cULus Mark
Buy the NMB 09238RE24PGTD0 – Reliable Cooling Fan for Industrial Applications
Experience the durability and high performance of the NMB IP68/69K brushless DC fan, perfect for outdoor, factory automation, refrigeration, and harsh environment cooling. This fan features a robust plastic casing with UL94V-0 rating, stainless steel ball bearings for extended lifespan, and an open collector tachometer signal for precise monitoring. Rated for 24V with an airflow of 141.26 CFM, it ensures efficient cooling, low noise operation, and long-term reliability up to 100,000 hours at 25°C. Suitable for diverse industrial applications, order now for seamless online purchasing.
Get NMB 09238RE24PGTD0 today—designed for long-lasting durability and high reliability in demanding industrial and outdoor environments.
