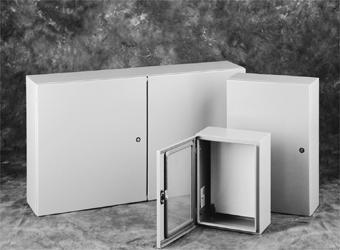

NVENT HOFFMAN CSD16166 Wall-Mount Enclosure
The CSD16166 is a gray ANSI 61 CONCEPT type-4 and 12 wall-mount single-door enclosure constructed from 16 and 18-gauge steel. Designed for machine control applications, this enclosure features a three-point latch system on doors measuring 42 inches or wider, using a quarter-turn, slotted latch. It includes easy-to-remove hinge pins with built-in captivation clips, a minimum-width body flange for maximum door opening (up to 210 degrees), and seams that are continuously welded and ground smooth. The enclosure has corner-formed doors, high-torque threadless studs and fasteners, an external formed body flange, and a seamless foam-in-place gasket for sealing. For larger doors, a door alignment device is provided. Grounding provisions include a grounding stud on the body and bonding points on the door. The removable door features hidden hinges for a clean appearance and has provisions for an optional high-impact thermoplastic data pocket. Hardware includes panel mounting nuts, grounding hardware, and sealing washers. Optional window-door versions incorporate a clear polycarbonate window flush with the door surface. This enclosure is suitable for industrial applications.
NVENT HOFFMAN CSD16166 Wall-Mount Enclosure Specifications:
- Material: 16 and 18-gauge steel
- Finish: ANSI 61 gray epoxy polyester powder paint
- Seams: Continuously welded and ground smooth
- Door: Corner-formed with hidden hinges, opening up to 210 degrees
- Latch: Three-point with quarter-turn, slotted latch system on doors ≥42 inches
- Hinges: Easy-to-remove with captivation clips
- Gasket: Seamless foam-in-place for sealing
- Grounding: Grounding stud on body and bonding point on door
- Features: External formed body flange, high-torque threadless studs, provision for thermoplastic data pocket
- Optional: Window-door version with polycarbonate window flush with door surface
- Suitable for industrial control and automation applications
Buy the Buy Hoffman Concept Wall-Mount Enclosure Part Number CSD16166 Online
Enhance your industrial control setup with the Hoffman Concept CSD16166 wall-mount enclosure. Crafted from high-quality steel, it features a durable gray epoxy finish, hidden hinges for aesthetic appeal, and a foam gasket for reliable sealing. The robust construction supports a maximum door opening of 210 degrees, with provisions for optional transparent windows, ideal for machine control environments. Easy to install, maintain, and customize with hardware accessories, this enclosure is the perfect choice for ensuring rugged, long-lasting protection essential in manufacturing and automation applications.
Buy Hoffman Concept CSD16166 now and experience unmatched reliability and performance for industrial machine control installations.
