NXP AFT09MS031GNR1 Wideband RF Power Transistor
This RF power LDMOS transistor operates over a wide frequency range from 764 to 941 MHz. It features unmatched input and output impedance for versatile application, integrated ESD protection, and stability enhancements. The device offers excellent thermal performance and high ruggedness, making it suitable for demanding RF amplification applications.
NXP AFT09MS031GNR1 Wideband RF Power Transistor Specifications:
- Frequency Range: 764 to 941 MHz
- Package Type: TO-270-2, Plastic, GULL WING
- Maximum Drain-Source Voltage: 40 V
- Maximum Gate-Source Voltage: ±12 V
- Drain Power: 31 W
- Operating Temperature Range: -40°C to +150°C
- Total Device Dissipation: 317 W at 25°C
- Thermal Resistance, Junction to Case: 0.63 °C/W
- Case Operating Temperature: -40°C to +150°C
- Input Capacitance: 140 pF
- Output Capacitance: 63 pF
- Reverse Transfer Capacitance: 24 pF
- ESD Protection: Human Body Model 2500 V, Machine Model 100 V
- Load Mismatch Tolerance: VSWR >65:1 at 870 MHz, No Device Degradation
- Manufactured with RoHS Compliant materials

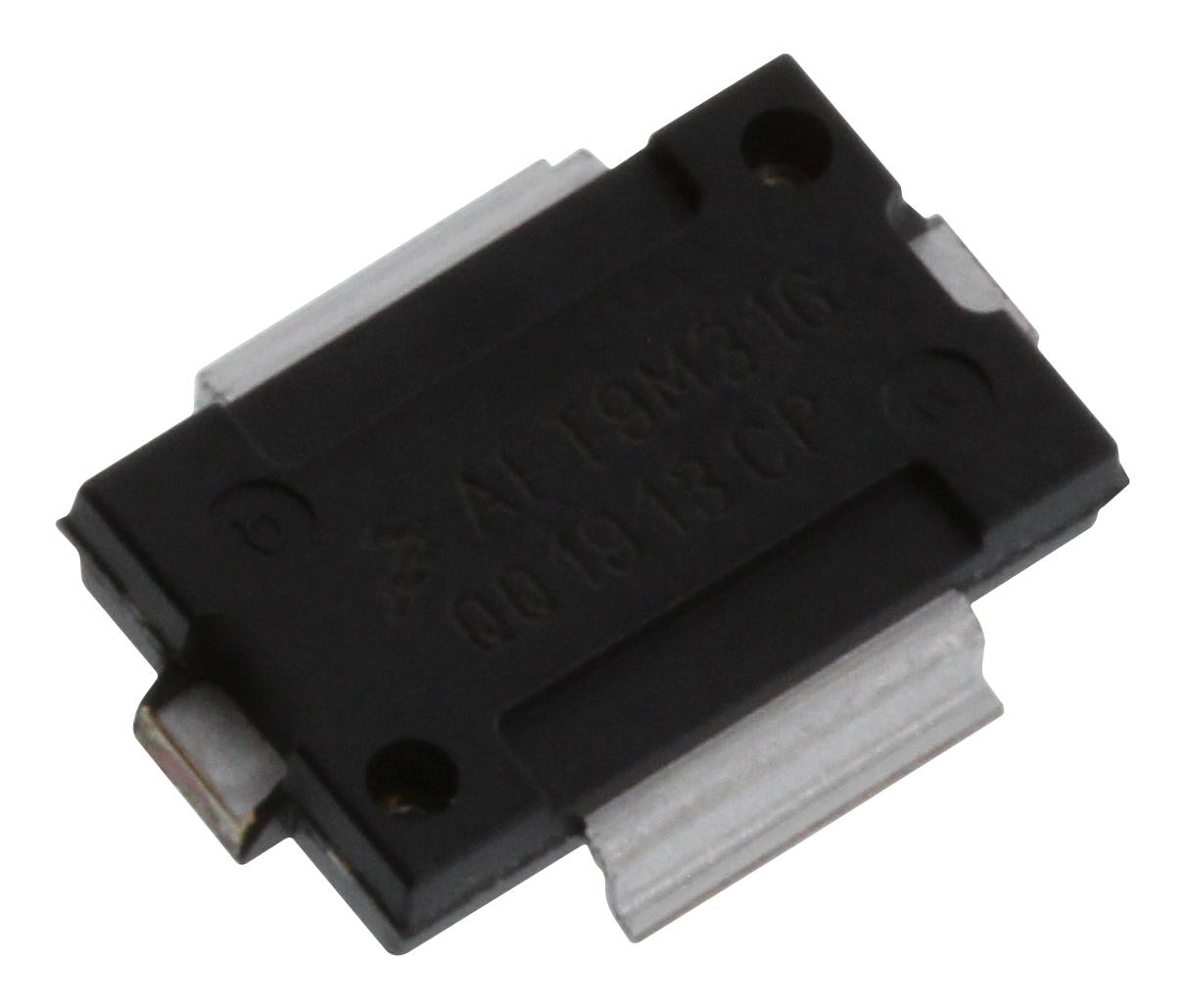

Buy the Buy Freescale RF Power LDMOS Transistor Part Number AFTO9MS031GNR1 Online
Enhance your RF systems with the high-performance wideband RF power transistor offering operation from 764 to 941 MHz. Features unmatched impedance, integrated ESD protection, stability enhancements, and excellent thermal performance. Designed for demanding RF amplification applications, this device provides reliable ruggedness and maximum power output of 31 W. Its robust construction and wide voltage tolerance make it ideal for mobile radio and communication infrastructure, ensuring your projects perform efficiently and reliably. Order online now for fast delivery.
Order your Freescale SeriesAFTO9MS031GNR1 wideband RF power transistor today and enhance your RF amplification projects with high ruggedness and efficiency.
Frequently Asked Questions
Where can I buy NXP AFT09MS031GNR1?
You can click on the BUY or RFQ button to purchase AFT09MS031GNR1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part AFT09MS031GNR1?
You can download the AFT09MS031GNR1 datasheet or visit the NXP website for support.
Who is the manufacturer of AFT09MS031GNR1?
NXP
