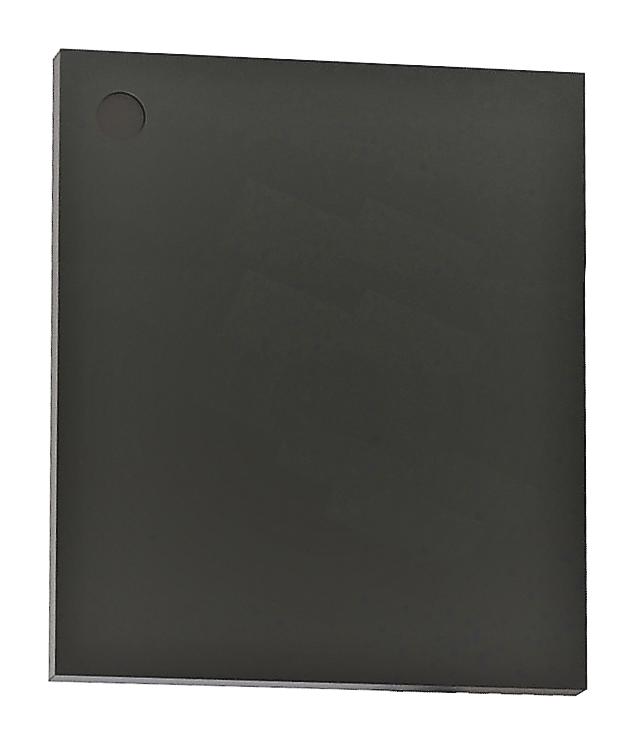

NXP NTP53121G0JHKZ NFC Sensor IC
The NXP NTAG 5 link is an NFC Forum-compliant Type 5 Tag IC optimized for sensor-driven applications, supporting long-range NFC communication over 60 cm, energy harvesting, scalable security, AES mutual authentication, flexible memory segmentation, and I2C interface for sensor and device integration. It provides secure cloud connectivity with high data integrity, customizable security levels, and extensive application support including IoT, low-power sensing, and secure data transfer. The IC offers 2048 bytes user memory, 256 bytes SRAM, and advanced security features for highly reliable, robust operation in diverse environments.
NXP NTP53121G0JHKZ NFC Sensor IC Specifications:
- Operating Frequency: 13.56 MHz
- Memory Size: 2048 bytes user EEPROM, 256 bytes SRAM
- Energy Harvesting Output Voltage: 1.62V to 3V or 3.3V to 5.5V
- Write Endurance: 1,000,000 cycles
- Data Retention: 40 years
- Communication: NFC Forum Type 5, ISO/IEC 15693, NFC NFC Forum Type 5 Tag compliant
- Energy Harvesting Power: Up to 30 mW configurable
- Security: AES 128 mutual authentication, 64-bit ECC signature, password protection, NFC privacy mode
- Supported Bitrates: Up to 26 kbps (reader to tag), 53 kbps (tag to reader)
- Operating Temperature Range: -40°C to 105°C (read), -40°C to 85°C (write)
- Supply Voltage: 1.62V to 5.5V
- Physical Package Options: XQFN16, TSSOP16, SO8 with dimensions ranging from 3.9x4.4mm to 16-pin packages
- Unique Identifier: 64-bit UID
- Security Features: EAS, AFI protection, lock bits, configurable page and memory protection, energy harvesting control
- Application Domains: IoT, smart sensors, asset tracking, low-power data acquisition, secure NFC communication, device authentication
Buy the Buy NXP NTP53121G0JHKZ NFC Sensor IC Part Number NTP53121G0JHKZ Online
Order the NXP NTP53121G0JHKZ NFC sensor IC online now to enable secure, scalable, and energy-efficient IoT solutions. Designed for long-range NFC communication, this device offers robust security features like AES mutual authentication, password protection, ECC signature, and energy harvesting. Its versatile memory options include 2048 bytes EEPROM and 256 bytes SRAM, supporting low-power and high-reliability sensor applications. Perfect for smart sensors, asset tracking, and secure NFC data transfer, it guarantees long-term data retention and endurance. Buy today for quick delivery and reliable operation in diverse environments.
Get NXP NTP53121G0JHKZ NFC Sensor IC today—optimized for sensor-driven applications with long-range NFC, energy harvesting, and scalable security.
Frequently Asked Questions
Where can I buy NXP NTP53121G0JHKZ?
You can click on the BUY or RFQ button to purchase NTP53121G0JHKZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTP53121G0JHKZ?
You can download the NTP53121G0JHKZ datasheet or visit the NXP website for support.
Who is the manufacturer of NTP53121G0JHKZ?
NXP
