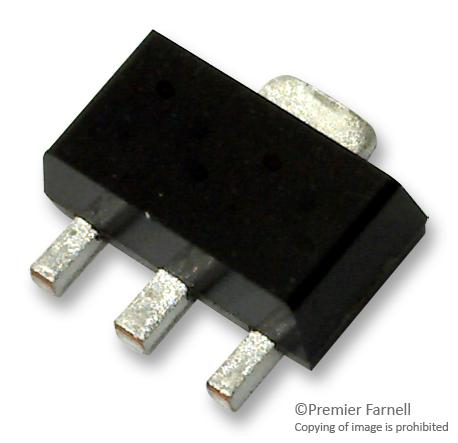

NXP BGA7027135 RF Amplifier
The BGA7027 is a high linearity silicon amplifier operating between 400 MHz and 2700 MHz, delivering 0.5 W output power and featuring integrated active biasing and ESD protection. It is suitable for broadband applications such as CPE, WLAN, RFID, wireless infrastructure, and satellite TV systems. The amplifier's small signal gain at 2 GHz is around 11 dB, with a 28 dBm output power at 1 dB gain compression. Its compact SOT89 package, easy surface mounting, and broad application range make it ideal for diverse RF amplification needs in industrial and communication systems.
NXP BGA7027135 RF Amplifier Specifications:
- Frequency Range: 400 MHz to 2700 MHz
- Output Power: 28 dBm at 1 dB gain compression
- Small Signal Gain: 11 dB at 2 GHz
- Supply Voltage: 5 V
- Supply Current: 165 mA typical
- Impedance Matching: 50 Ω at input and output
- Package: Surface-mounted SOT89
- ESD Protection: All pins
- Integrated active biasing for broad electrical performance
- Thermal Resistance Junction to Case: 38 K/W
- Junction Temperature: Up to 150°C
- Operating Temperature Range: -40°C to +85°C
- Designed for broadband CPE, WLAN, RFID, and satellite systems
- Robust ESD and thermal handling features for industrial environments
Buy the NXP BGA7027 – Reliable RF Amplifier for Industrial Applications
Get the NXP BGA7027 RF amplifier online today for reliable performance across 400 to 2700 MHz. This 0.5 W amplifier ensures high linearity, low distortion, and broad application compatibility, making it ideal for industrial, WLAN, RFID, and satellite systems. Its compact SOT89 surface-mount package with integrated active biasing and ESD protection simplifies integration into your RF designs. Purchase now to benefit from high quality, robust thermal management, and excellent signal fidelity tailored for demanding RF environments and modern communication infrastructure.
Order your NXP BGA7027 high linearity RF amplifier today and enhance your wireless and broadband projects with dependable, broad frequency support.
Frequently Asked Questions
Where can I buy NXP BGA7027135?
You can click on the BUY or RFQ button to purchase BGA7027135 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BGA7027135?
You can download the BGA7027135 datasheet or visit the NXP website for support.
Who is the manufacturer of BGA7027135?
NXP
