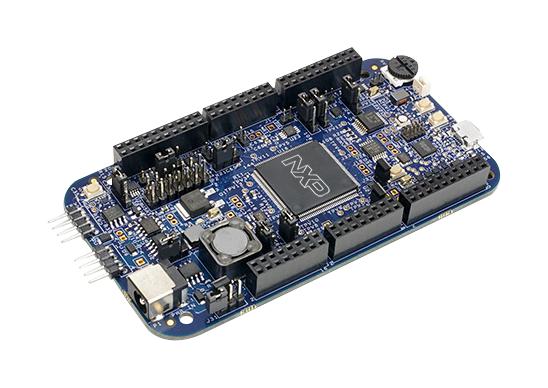

NXP DEVKITMPC5744P Embedded Development Board
The DEVKIT-MPC5744P is an ultra-low-cost development platform for MPC5744P microcontrollers, featuring dual 200 MHz Power Architecture cores, Arduino shield compatibility, and integrated OpenSDA debug interface. It supports multiple communication interfaces including CAN, LIN, FlexRay, UART, and SPI, making it suitable for industrial and automotive applications. The kit includes user LEDs, push-buttons, potentiometer, and flexible power options—USB or external 12V supply—and provides easy access to I/O pins for prototyping and expansion. Ideal for embedded system development with comprehensive documentation and software tools.
NXP DEVKITMPC5744P Embedded Development Board Specifications:
- MCU: MPC5744P with 2 x 200 MHz Power Architecture cores
- Memory: Up to 2.5MB Flash, 256KB RAM
- Supported Operating Temperature: -40°C to +125°C
- Communication Interfaces: CAN, LIN, FlexRay, UART, SPI
- Power Supply: 12V external or USB (OpenSDA)
- Power Consumption: Supports low-power modes for efficient operation
- Form Factor: 144 LQFP, Arduino UNO R3 compatible footprint
- Voltage Rating: 12V supply, 5V logic levels
- Connectivity: On-chip FlexRay, CAN, LIN support, off-chip UART and SPI
- Debug Interface: OpenSDA with USB Multilink support
- Dimensions: Compatible with standard Arduino shields, pin headers accessible for prototyping
- Operating Voltage: 3.3V logic, supporting various sensor and peripheral connections
- Included Components: User RGB LED, push-buttons, potentiometer, power options
- Additional Features: Supports JTAG debugging, easy I/O access, external power options, qualified to AEC-Q100 Grade 1
Buy the Buy NXP MPC5744P Part Number DEVKITMPC5744P Online
Enhance your embedded development with the NXP MPC5744P development kit. Equipped with dual-core processing, multiple communication interfaces, and extensive I/O options, this board allows for rapid prototyping and deployment in industrial and automotive applications. Compatible with Arduino shields, it provides easy expansion and integration. The kit includes comprehensive documentation, pre-installed debug interfaces, and flexible power options, making it an ideal choice for engineers and developers seeking a reliable, versatile platform for complex embedded system design.
Buy NXP MPC5744P with versatile communication interfaces now and experience unmatched reliability and automotive-grade performance in your projects.
Frequently Asked Questions
Where can I buy NXP DEVKITMPC5744P?
You can click on the BUY or RFQ button to purchase DEVKITMPC5744P from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part DEVKITMPC5744P?
You can download the DEVKITMPC5744P datasheet or visit the NXP website for support.
Who is the manufacturer of DEVKITMPC5744P?
NXP
