NXP MC56F8033VLC Digital Signal Controller
The MC56F8033VLC is a digital signal controller featuring an efficient 16-bit 56800E family core with dual Harvard architecture. It delivers up to 32 million instructions per second (MIPS) at a 32 MHz clock frequency. The device includes a single-cycle 16x16-bit parallel multiply-accumulate (MAC) unit, four 36-bit accumulators with extension bits, and a 32-bit arithmetic and logic multi-bit shifter. Its parallel instruction set incorporates unique DSP addressing modes, hardware support for DO and REPEAT loops, and multiple internal address and data buses. The instruction set supports both digital signal processing and general control functions, with controller-style addressing modes and instructions designed for compact and efficient code. It also offers compatibility with efficient C compilers and support for local variables.
NXP MC56F8033VLC Digital Signal Controller Specifications:
- Core: 16-bit 56800E with dual Harvard architecture
- Instruction Speed: Up to 32 MIPS at 32 MHz
- Program Flash: 64KB (56F8033), 32KB (56F8023)
- Unified RAM: 8KB (56F8033), 4KB (56F8023)
- Multipliers: Single-cycle 16x16-bit parallel MAC
- Accumulators: Four 36-bit, including extension bits
- Arithmetic: 32-bit multi-bit shifter
- Instruction Set: DSP and control modes with special addressing
- Bus: Multiple internal data and address buses
- Peripherals: PWM, ADC, DAC, I2C, SPI, Timers, JTAG
- Clock: Internal relaxation oscillator, external crystal/clock support
- Power Modes: Run, Wait, Stop, Standby, Power-Down
- Voltage: 3.0V to 3.6V supply voltage
- Temperature Range: -40°C to 105°C
- Encapsulation: 32-pin LQFP, RoHS compliant
- Special Features: On-chip reset, low-voltage detection, security features

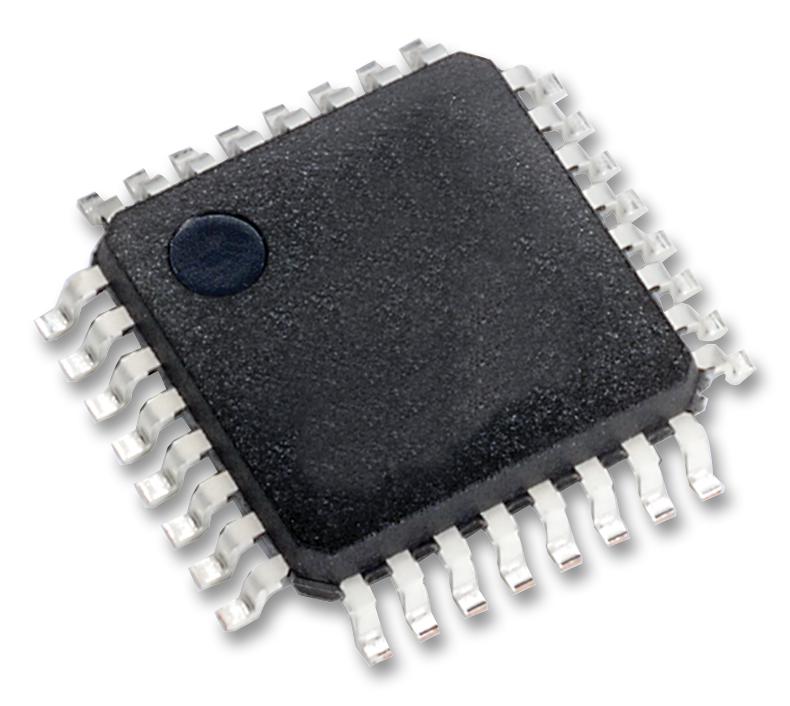

Buy the Buy Freescale MC56F8033VLC Digital Signal Controller Part Number MC56F8033VLC Online
Purchase the Freescale MC56F8033VLC digital signal controller online today and leverage its high-speed 32 MIPS processing, extensive peripherals, and flexible power modes. Perfect for industrial control, motion systems, and embedded applications, this device combines advanced DSP capabilities with efficient instruction set architecture, memory protection, and security features. Order now to ensure rapid delivery and start developing robust, cost-effective solutions that meet the demands of modern automation, control, and sensing systems.
Get Freescale MC56F8033VLC today—built for high-performance DSP applications with advanced control features and robust power management.
Frequently Asked Questions
Where can I buy NXP MC56F8033VLC?
You can click on the BUY or RFQ button to purchase MC56F8033VLC from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC56F8033VLC?
You can download the MC56F8033VLC datasheet or visit the NXP website for support.
Who is the manufacturer of MC56F8033VLC?
NXP
