NXP PN7360AUHNC300E NFC Contactless Microcontroller
The PN7360AUHNC300E is a compact NFC contactless microcontroller with integrated antenna driver, supporting ISO/IEC 14443, NFCIP-1, FeliCa, and ISO/IEC 15693. Powered by a Cortex-M0 processor, it offers high performance with low power consumption, suitable for secure payment, access control, and NFC applications. It supports multiple communication modes including active and passive, with configurable power modes, robust voltage monitoring, and flexible interface options like USB, SPI, and I2C. The device is ideal for building compact, reliable contactless systems with advanced security and stability features.
NXP PN7360AUHNC300E NFC Contactless Microcontroller Specifications:
- ARM Cortex-M0 core, up to 20 MHz operation frequency
- Flash memory: 160 kB / 80 kB, EEPROM: 4 kB, SRAM: 12 kB
- Supported communication modes: ISO/IEC 14443, NFCIP-1, FeliCa, ISO/IEC 15693
- Integrated antenna driver with load modulation, active and passive modes
- Multiple interface options: USB 2.0 full speed, SPI, I2C, HSUART
- Voltage monitoring: VBUS, VBUSP, PVDD, with programmable thresholds
- Power modes: active, standby, suspend, hard power-down
- Temperature sensors, overcurrent and overheat protection
- Package options: HVQFN64 and VFBGA64
- Operating temperature: -40°C to +85°C
- Low EMI design with robust ESD protections
- Supports low-power load modulation, active load modulation, adaptive waveform control
- Support for different card classes: A, B, C with configurable voltages
- Multiple timers and watchdog for reliable operation
- Supports external crystal oscillator at 27.12 MHz
- Automatic power management and clock gating for energy efficiency

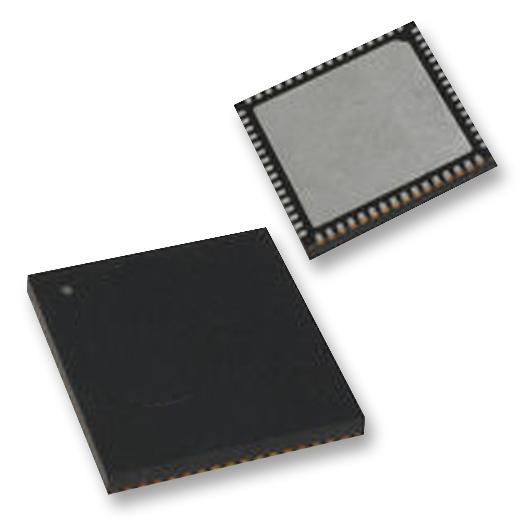

Buy the NXP Series PN7462 NFC Microcontroller: PN7360AUHNC300E
Get your NXP Series PN7360AUHNC300E NFC contactless microcontroller online today. With integrated antenna driver, low power consumption, and support for multiple protocols, it's perfect for secure, reliable contactless applications. Designed for continuous operation with advanced voltage monitoring, diverse communication interfaces including USB, SPI, and I2C, and robust protection features, this device ensures optimal performance for payment, access control, and NFC systems. Purchase now for a compact, energy-efficient, and highly secure solution to advance your contactless technology projects.
Order your NXP Series PN7360AUHNC300E NFC microcontroller today and give your contactless projects the reliable, high-performance solution they deserve.
Frequently Asked Questions
Where can I buy NXP PN7360AUHNC300E?
You can click on the BUY or RFQ button to purchase PN7360AUHNC300E from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PN7360AUHNC300E?
You can download the PN7360AUHNC300E datasheet or visit the NXP website for support.
Who is the manufacturer of PN7360AUHNC300E?
NXP
