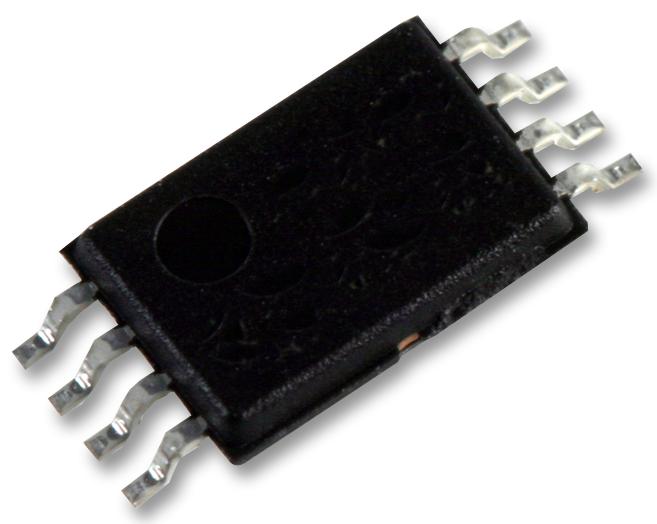

NXP PCA9540BDPQ900J I2C Multiplexer
The PCA9540B is a 2-channel I²C-bus multiplexer that allows voltage level translation between different bus voltages such as 1.8 V, 2.5 V, 3.3 V, and 5 V. It features a bidirectional, controlled via I2C, with channels that can be independently selected through a control register. The device supports hot insertion, low standby current, and wide power supply range from 2.3 V to 5.5 V. Its pass gates allow limiting voltage passed, making it suitable for mixed-voltage systems with various protection needs. The PCA9540B is ideal for complex multi-voltage I²C applications, ensuring reliable signal switching and isolation.
NXP PCA9540BDPQ900J I2C Multiplexer Specifications:
- Supply Voltage Range: 2.3 V to 5.5 V
- Channels: 2 bidirectional I²C channels with independent control
- Voltage Translation: Supports 1.8 V, 2.5 V, 3.3 V, and 5 V bus voltages
- Pass Gate Voltage Limit: Up to Vpp, typical 2.7 V at 3.3 V supply
- Power-On Reset: Clears registers and channels default to deselect
- Maximum Current: IO up to 425 mA, Ibus up to 100 mA
- ESD Protection: Exceeds 2000 V HBM
- Temperature Range: -40°C to +85°C
- Supply Current: 20–50 nA (operating), 0.1–1 nA (standby)
- Package Options: SO8, TSSOP8, XSON8
- Voltage Level Translation Support: Yes, with Vpp pin utilized
- Compatible with SMBus and I²C bus standards
- Low Ron switches for efficient signal passing
- Supports hot insertion and glitch-free power-up
- RoHS compliant, Pb-free
Buy the Buy NXP PCA9540B Part Number PCA9540BDPQ900J Online
Purchase the NXP PCA9540BDPQ900J online today to ensure seamless voltage level translation and reliable I²C bus multiplexing. This device supports multiple bus voltages, making it ideal for complex systems requiring signal isolation and efficient switching. With low power consumption, SMBus compatibility, and robust ESD protection, the PCA9540B guarantees high reliability and performance in demanding applications. Order now and experience fast delivery and full technical support for your integration needs.
Get NXP PCA9540BDPQ900J today—built for voltage level translation and reliable I²C signal switching in complex multi-voltage systems.
Frequently Asked Questions
Where can I buy NXP PCA9540BDPQ900J?
You can click on the BUY or RFQ button to purchase PCA9540BDPQ900J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PCA9540BDPQ900J?
You can download the PCA9540BDPQ900J datasheet or visit the NXP website for support.
Who is the manufacturer of PCA9540BDPQ900J?
NXP
