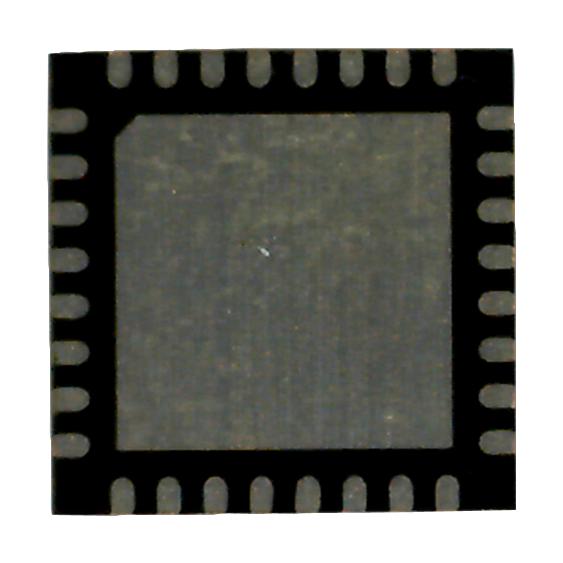

NXP PTN3363BSMP HDMI DVI Level Shifter
The PTN3363 is a low power, high-speed level shifter designed for multimedia applications. It converts four lanes of AC-coupled differential signals to HDMI and DVI standards, supporting data rates up to 3.4 Gbit/s per lane. Its features include programmable equalization, integrated termination resistors, active buffering for DDC and HPD signals, and power-saving modes. Suitable for supporting 4K video, 3D formats, and long cable drives, it offers a reliable solution for display interface modulation. Compact in a HVQFN32 package, it ensures low power consumption and robust electrical performance.
NXP PTN3363BSMP HDMI DVI Level Shifter Specifications:
- Supports data rates up to 3.4 Gbit/s per lane (340 MHz TMDS clock)
- Converts four low-swing AC-coupled differential signals to HDMI v1.4b and DVI v1.0 standards
- Integrated 50 Ω termination resistors for differential inputs
- Programmable receive equalization: short to GND for 0 dB, short to Vop for 2 dB, short to Vop and GND for 4 dB, short to Vop for 6 dB
- Supports 36-bit deep color, 4K x 2K resolution, and 3D formats
- Active buffering for DDC and HPD signals with voltage level shifting from 3.3 V to 5 V and vice versa
- Back-current safe TMDS outputs to prevent current flow when unpowered
- Has low power standby mode triggered by HPD_SINK LOW for power efficiency
- Power supply range: 2.8 V to 3.6 V, typical power consumption 72 mW
- Package: HVQFN32 with exposed thermal pad for efficient heat conduction
Buy the NXP PTN3363 – Reliable HDMI Level Shifter for Industrial Applications
Order the NXP PTN3363 HDMI DVI level shifter online today and ensure high-speed, low power operation for your display solutions. Perfect for 4K, 3D, and long cable applications, this dependable device features programmable equalization, integrated terminations, active buffers for DDC and HPD signals, and a compact HVQFN32 package. Its advanced design guarantees reliable data transmission at 3.4 Gbit/s per lane, supporting deep color and high-resolution video formats. Ideal for industrial, consumer electronics, and professional multimedia devices, it delivers durability, efficiency, and easy integration for demanding display applications.
Get NXP PTN3363 today—built for high-speed data conversion and robust display interface performance.
