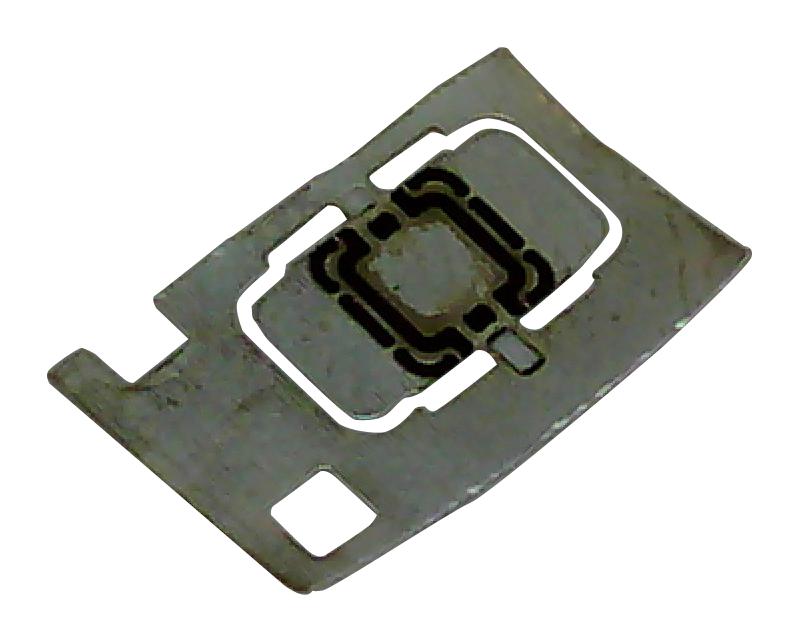

NXP HT1MOA4S30E3J Contactless Identification Transponder
The HITAG 1 transponder IC is a highly integrated contactless identification device operating at 125 kHz, providing secure data transmission and energy supply via RF link. It features a non-volatile 2 kbit EEPROM memory, organized in 64 pages of 4 bytes each, with a retention time of 10 years and endurance of 100,000 write/erase cycles. Suitable for asset tracking, logistics, industrial automation, and gas cylinder ID, it supports anti-collision, mutual authentication, and encryption for reliable multi-transponder operation in long-range applications. Its compact design requires no internal power source beyond RF energy, making it ideal for various contactless identification systems.
NXP HT1MOA4S30E3J Contactless Identification Transponder Specifications:
- Operating Frequency: 125 kHz
- Memory Capacity: 2 kbit EEPROM organized in 64 pages of 4 bytes each
- Retention Time: 10 years at Tamb < 55°C
- Write Endurance: 100,000 cycles
- Data Transmission: RF link with encrypted protocol, bidirectional half duplex
- Anti-Collision Mode: Supports multiple transponders simultaneously
- Dimensions: Integrated in wafer-level package, no external components required
- Supply: Powered via inductive coupling; no internal battery needed
- Operating Temperature: -55°C to +85°C
- Application Fields: Logistics, asset tracking, industrial automation, gas cylinder ID
Buy the NXP Series HITAG 1 Transponder: HT1MOA4S30E3J
Purchase the NXP HITAG 1 transponder IC HT1MOA4S30E3J online today and benefit from its robust 2 kbit EEPROM memory, encrypted RF communication, anti-collision capability, and long-term data retention. Ideal for asset tracking, logistics, and industrial automation, this contactless device operates at 125 kHz without the need for an internal power source, ensuring reliable performance in various environments. Quickly integrate this secure, high-end transponder into your contactless identification systems for efficient and dependable operation.
Buy NXP HITAG 1 Transponder IC HT1MOA4S30E3J now and experience unmatched reliability, secure data transmission, and contactless asset identification.
Frequently Asked Questions
Where can I buy NXP HT1MOA4S30E3J?
You can click on the BUY or RFQ button to purchase HT1MOA4S30E3J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part HT1MOA4S30E3J?
You can download the HT1MOA4S30E3J datasheet or visit the NXP website for support.
Who is the manufacturer of HT1MOA4S30E3J?
NXP
