NXP NTS0308EPWJ Voltage Level Translator
The NTS0308E is a high-performance 8-bit dual supply translating transceiver featuring open-drain outputs and automatic direction sensing. Capable of translating between voltages from 0.95 V to 3.6 V on the A side and 1.65 V to 5.5 V on the B side, it supports bidirectional communication with flexibility for various voltage levels. It includes ESD protection, low static current, and operates over temperature ranges from -40°C to +125°C. Ideal for I²C, SMBus, and UART applications, it ensures reliable level translation with minimal ringing and overshoot. The device comes in a compact TSSOP20 package, with no power sequencing required.
NXP NTS0308EPWJ Voltage Level Translator Specifications:
- Supply Voltage A: 0.95 V to 3.6 V
- Supply Voltage B: 1.65 V to 5.5 V
- Input Voltage A side and OE: -0.5 V to 6.5 V
- Input Voltage B side: -0.5 V to 6.5 V
- Maximum Data Rate Open-drain: 2 Mbps
- Push-pull: 20 Mbps
- ESD Protection IEC 61000-4-2: 8 kV contact, HBM exceeds 2000 V, CDM exceeds 1000 V
- Operating Temperature Range: -40°C to +125°C
- Dimensions: TSSOP20 package, body width 4.4 mm
- Thermal Resistance: Junction to Ambient 77.7 °C/W
- Power-up: No special sequencing, outputs disabled when supply off
- Input and output capacitance: Typical 4 pF (A port), 75 pF (B port)
- Low static current: 0.1 to 0.5 pA (A port), 4-75 pA (B port)
- Typical Propagation delay: 9.2 ns to 114 ns depending on voltage, temperature, and load
- Enabled/disabled times: 100-250 ns with no external load

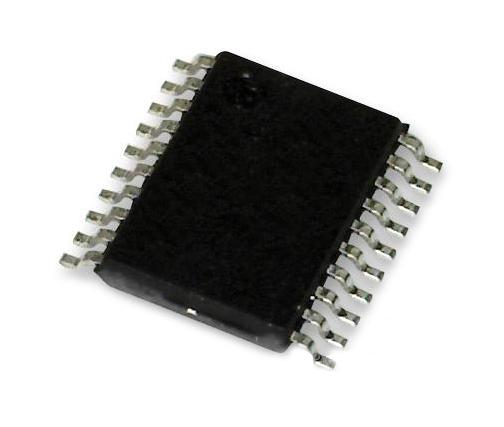

Buy the Buy NXP NTS0308E Part Number NTS0308EPWJ Online
Purchase the NXP NTS0308EPWJ today to ensure reliable and efficient voltage level translation for your industrial, communication, and microcontroller projects. Designed with open-drain outputs and auto direction sensing, this 8-bit dual supply transceiver supports voltage translation between 0.95 V and 5.5 V, providing excellent protection, high data rates, and robust performance in harsh environments. Seamlessly integrate the device into your PCB with its compact TSSOP20 package, knowing it offers excellent EMI reduction, low static current, and no required power sequencing for hassle-free operation. Order now for rapid delivery and superior quality.
Get NXP NTS0308EPWJ today—built for precision level translation and long-lasting durability.
