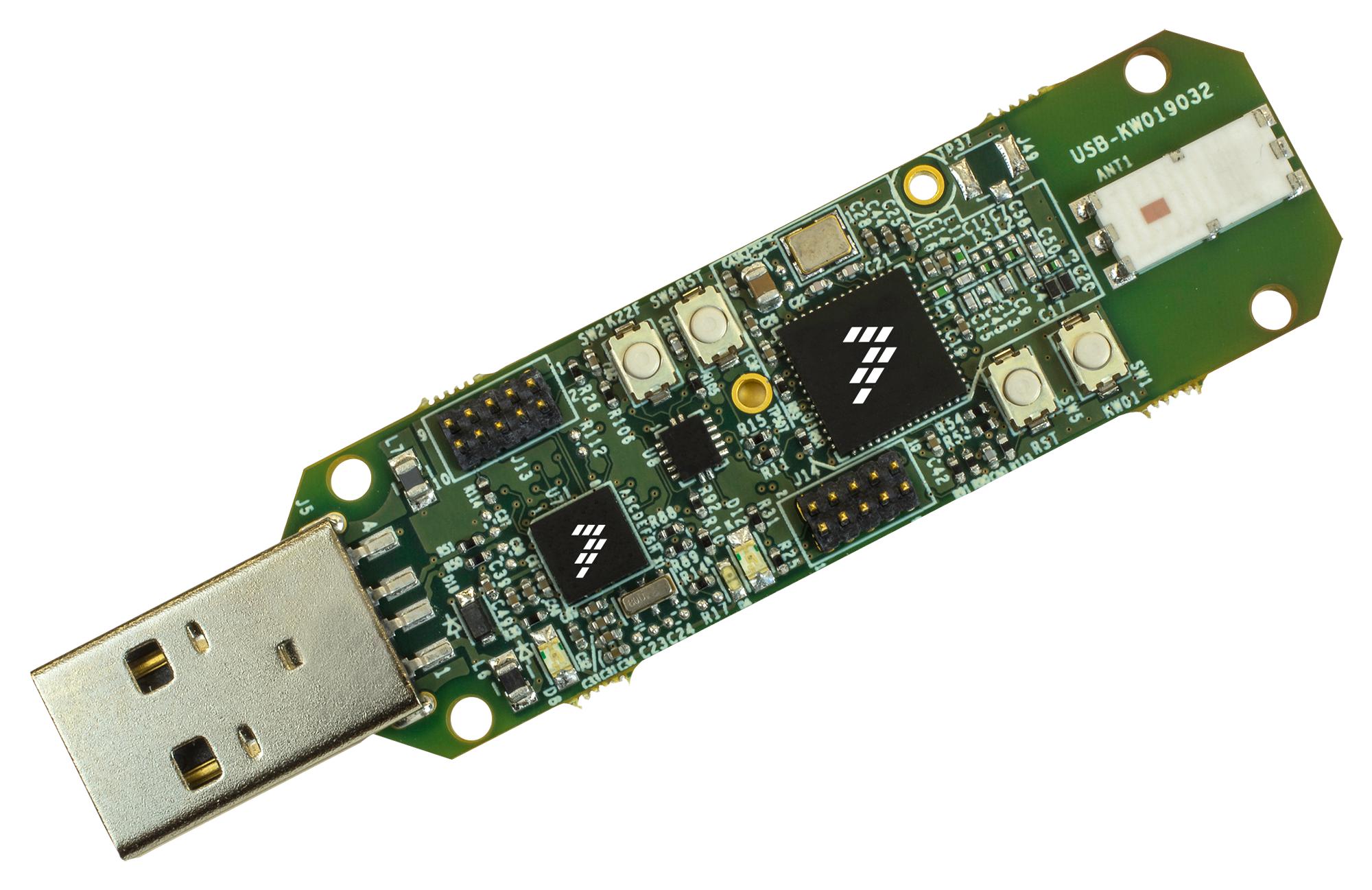

NXP USBKW019032 Wireless Module
The product is a highly integrated, cost-effective sub-1 GHz wireless solution combining an RF transceiver and an ARM Cortex M0+ MCU, supporting multiple modulation schemes like FSK, GFSK, MSK, and OOK. It operates over wide frequency bands including 315 MHz to 955 MHz in license-free ISM bands, ideal for low-power applications such as meter reading, sensor networks, home automation, security, and industrial control. The in-package design minimizes component count, offering a compact and robust wireless node with programmable power and frequency features, regulatory compliance, and comprehensive software support.
NXP USBKW019032 Wireless Module Specifications:
- Frequency Range: 315-955 MHz in ISM bands
- Modulations Supported: FSK, GFSK, MSK, OOK
- Operating Voltage: 1.8V to 3.6V
- Core Processor: ARM Cortex M0+
- Flash Memory: 128 KB
- RAM: 16 KB
- Package: 60-pin LGA, 8x8 mm
- Operating Temperature: -40°C to 85°C
- Supply Current in Sleep Mode: 0.1 nA
- Transmit Power: Up to +17 dBm
- Sensitivity: down to -120 dBm at 1.2 kbps
- Packet FIFO: 66 bytes
- Integral Temperature Sensor
- Supports FCC and ETSI regulations
- Clock Sources: 32 MHz crystal oscillator, internal references
- Development Software: Hardware evaluation tools, connectivity firmware, SMAC stack
- Additional features include listen mode, secure packet handling, and multiple low-power modes
Buy the Freescale Series MKW01 Sub-1 GHz Wireless Node: MKW012Z128
Order the Freescale MKW012Z128 wireless module online today and equip your IoT, automation, or security system with a robust, low-power, sub-1 GHz transceiver. This high-performance, integrated solution supports multiple modulation schemes, operates across multiple frequencies, and ensures compliance with worldwide standards. Its small form factor, programmable features, and comprehensive software support make it ideal for development and deployment of reliable wireless links. Enhance your project with a durable and versatile wireless node—purchase now for quick delivery and technical support.
Get Freescale MKW012Z128 today—built for precision, low power, and reliable wireless communication in IoT and automation projects.
Frequently Asked Questions
Where can I buy NXP USBKW019032?
You can click on the BUY or RFQ button to purchase USBKW019032 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part USBKW019032?
You can download the USBKW019032 datasheet or visit the NXP website for support.
Who is the manufacturer of USBKW019032?
NXP
