NXP LS1046AXN8T1A Embedded Processor
The LS1046A is a high-performance, power-efficient system-on-chip (SoC) designed with four ARM Cortex-A72 cores up to 1.8 GHz, integrated with advanced networking, peripherals, and memory controllers. Its features include hierarchical interconnects, multiple high-speed interfaces including PCIe 3.0, SATA 6 Gbps, 10G SerDes, USB 3.0 controllers, and comprehensive security options via trust architecture. Encased in a 780 FC-PBGA package, it serves embedded applications like enterprise routers, switches, storage, and security gateways with reliable ECC support and thermal management for demanding environments.
NXP LS1046AXN8T1A Embedded Processor Specifications:
- Cores: 4 ARM Cortex®-A72, up to 1.8 GHz
- Cache: 2 MB L2, 32 KB L1 data, 48 KB L1 instruction caches
- Memory Controller: DDR4 SDRAM, ECC, interleaving up to 2.1 GT/s
- High-Speed Interfaces: PCIe 3.0 x1/2/4, SATA 6 Gbps, 10G SerDes (XFI, SGMII, KR)
- USB Controllers: 3 x USB 3.0 with PHY, supported speeds up to SuperSpeed
- Networking: 2 x Gigabit Ethernet with PHY, RGMII, IEEE 1588 support
- Peripherals: SPI, I2C, UART, GPIO, Flextimers, USB, eSDHC, Tamper, Security Fuses
- Power: Core, platform, DDR, and peripheral supplies with sequencing from 0.9 V to 3.3 V
- Package: 780 FC-PBGA, 23 mm x 23 mm, ball pitch 0.8 mm
- Thermal: Junction-to-ambient, junction-to-case, heat sink options, support for thermal monitoring
- Environmental: Operating from -55°C to 105°C, with thermal management support

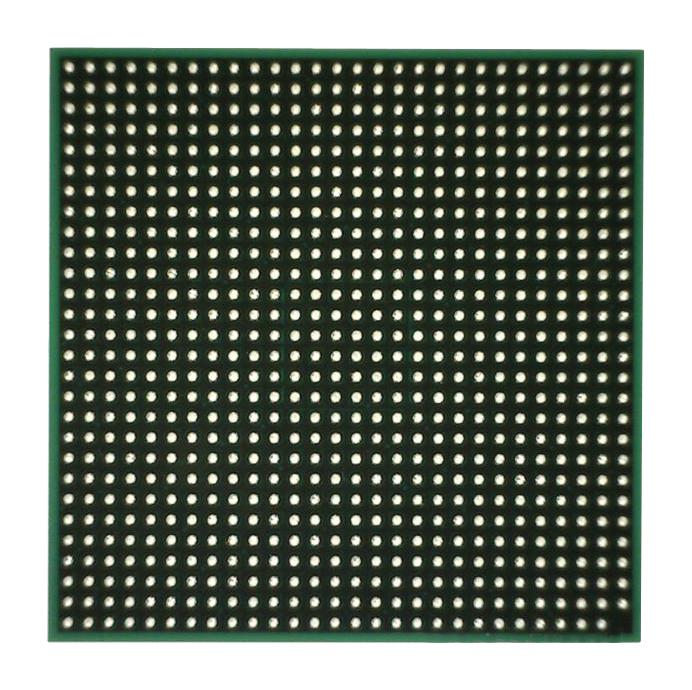

Buy the Buy NXP System-on-Chip LS1046A Part Number LS1046AXN8T1A Online
Get the NXP LS1046A embedded processor in an easy-to-order LS1046AXN8T1A package. Featuring four ARM Cortex-A72 cores up to 1.8 GHz, integrated high-speed networking, PCIe 3.0, SATA, USB 3.0 controllers, security fuse support, and thermal management. Perfect for enterprise routers, switches, storage, and security appliances. Designed for high reliability with ECC memory support and a robust 780 FC-PBGA package. Enhance your project’s performance and security by ordering online today for quick delivery and exemplified NXP quality.
Order your NXP LS1046A Series LS1046AXN8T1A today and elevate your network and storage solutions with reliable, high-performance processing.
Frequently Asked Questions
Where can I buy NXP LS1046AXN8T1A?
You can click on the BUY or RFQ button to purchase LS1046AXN8T1A from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part LS1046AXN8T1A?
You can download the LS1046AXN8T1A datasheet or visit the NXP website for support.
Who is the manufacturer of LS1046AXN8T1A?
NXP
