NXP PN7150B0HNC11002E NFC Controller
The PN7150 is a high-performance NFC controller with integrated firmware supporting all NFC Forum modes. It features a compact design with embedded NFC protocols, flexible host interface options including I²C, and supports contactless communication at 13.56 MHz. The device is suitable for applications like mobile devices, IoT, and access control systems, offering low power consumption, configurable power states, and advanced RF front-end technology for smaller antenna form factors.
NXP PN7150B0HNC11002E NFC Controller Specifications:
- Supply Voltage: 1.8 V to 3.6 V (Vpp), 2.3 V to 5.5 V (Vgat)
- Operating Temperature: -30°C to +85°C
- Package Types: HVQFN40, WLCSP42
- Dimensions: HVQFN40 body 6 mm x 6 mm x 0.85 mm; WLCSP42 2.88 mm x 2.80 mm x 0.54 mm
- RF Frequency Support: 13.56 MHz
- RF Protocols Supported: NFCIP-1, NFCIP-2, ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa, MIFARE, NFC TAG types 1-5
- Host Interface: I²C (up to 3.4 MBaud), optional interrupt line
- Microcontroller: ARM Cortex-M0 embedded core
- Power Management: supports multiple power states, low power polling
- Antenna Driver Outputs: TX1, TX2, supporting active load modulation capabilities
- Integrated RF level detector and tuning capabilities
- Supported communication speeds: up to 424 kbps in contactless modes
- Features include: embedded firmware, antenna matching, low power modes, temperature management
- Operating modes: Full power and Power Off, with multiple logical power states for efficiency

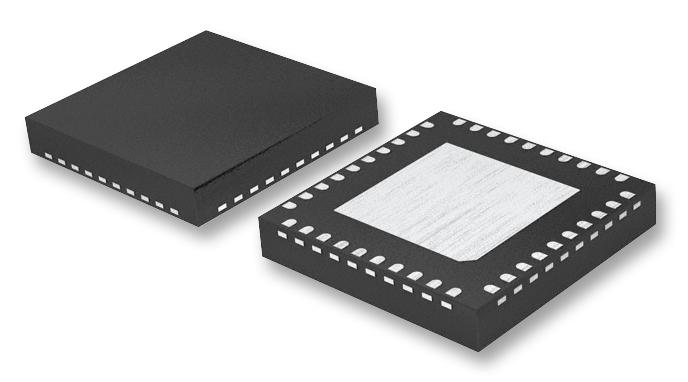

Buy the Buy NXP PN7150 NFC Controller Supporting All NFC Modes Online
Get the NXP PN7150 NFC Controller today for reliable all-mode contactless communication solution. Designed for mobile devices, IoT, and access control, it offers compact size, embedded firmware, low power operation, and extensive protocol support. Easy integration with I²C host interface and antenna matching guarantees flexibility and performance. Enhance your product with advanced RF features, configurable modes, and support for NFC tag and Peer-to-Peer operations. Purchase now online to streamline your NFC-enabled applications, ensuring quality, efficiency, and compatibility in one compact package.
Order your NXP PN7150 NFC Controller today and enable seamless contactless communication in your projects with low power consumption and flexible integration options.
Frequently Asked Questions
Where can I buy NXP PN7150B0HNC11002E?
You can click on the BUY or RFQ button to purchase PN7150B0HNC11002E from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PN7150B0HNC11002E?
You can download the PN7150B0HNC11002E datasheet or visit the NXP website for support.
Who is the manufacturer of PN7150B0HNC11002E?
NXP
