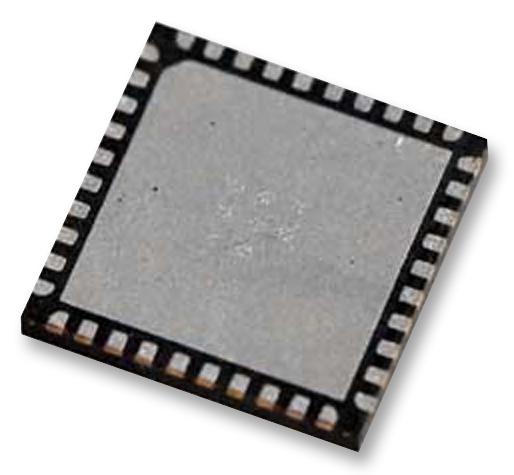

NXP JN5188HN001Z Low Power Wireless Microcontroller
The JN5188HN is a low power wireless microcontroller supporting IEEE 802.15.4 and ZigBee 3.0 networking, optimized for home automation and remote control applications. It features a 32 MHz ARM Cortex-M4 processor, up to 640 KB of embedded flash with OTA support, 152 KB RAM, multiple digital peripherals including ADC, DAC, PWM, UART, SPI, I2C, and a comprehensive radio transceiver capable of transmitting up to +11 dBm with sensitivity of -100 dBm. The device includes low power modes, an integrated NFC tag on the T variant, and is packaged in a compact HVQFN40 form factor suitable for battery-powered IoT solutions.
NXP JN5188HN001Z Low Power Wireless Microcontroller Specifications:
- Processor: ARM Cortex-M4, 48 MHz
- Embedded Flash: 640 KB
- RAM: 152 KB
- Operating Voltage: 1.9 V to 3.6 V
- Radio Sensitivity: -100 dBm
- Transmit Power: Up to +11 dBm
- Package: HVQFN40, 6 x 6 x 0.85 mm
- Supported Protocols: IEEE 802.15.4, ZigBee 3.0
- Low Power Modes: Sleep, Deep Sleep, Power Down, Deep Power Down
- Peripherals: 10-channel PWM, 2 timers, RTC, 2 USART, 2 SPI, 2 I2C, 12-bit ADC, NFC (on T variant)
- Temperature Range: -40°C to +125°C
Buy the Buy NXP JN5188HN001Z Low Power Wireless Microcontroller Online
Order the NXP JN5188HN001Z low power wireless microcontroller online today. This multi-protocol device offers high performance ARM Cortex-M4 processing, extensive memory, and integrated RF for ZigBee, Thread, and IEEE 802.15.4 networks. Perfect for battery-powered IoT applications, it features advanced low power modes, OTA updates, NFC support on the variant, and multiple digital peripherals including ADC, PWM, UART, SPI, and I2C. Secure and reliable, it ensures seamless connectivity for smart home, automation, and remote control systems.
Buy NXP JN5188HN001Z now and experience unmatched reliability and performance in IoT home automation projects.
Frequently Asked Questions
Where can I buy NXP JN5188HN001Z?
You can click on the BUY or RFQ button to purchase JN5188HN001Z from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part JN5188HN001Z?
You can download the JN5188HN001Z datasheet or visit the NXP website for support.
Who is the manufacturer of JN5188HN001Z?
NXP
