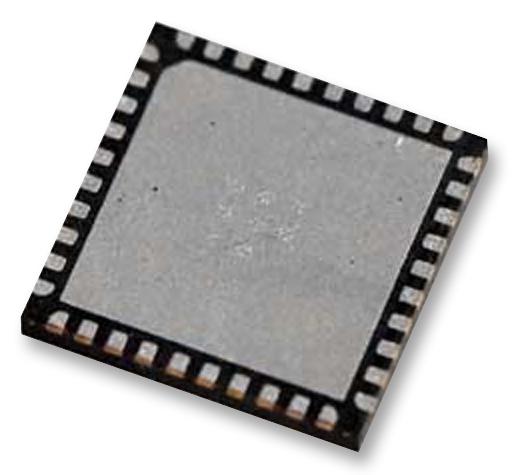

NXP MPF5024AVNA0ES Power Management IC
The PF5024 is a high-performance power management IC (PMIC) designed for advanced multimedia applications, automotive safety levels, and systems requiring reliable voltage regulation. It features multiple low-voltage buck regulators with programmable voltage, soft-start, DVS ramp, spread-spectrum, and multi-phase operation capabilities. The device integrates extensive safety features, including voltage monitoring, thermal shutdown, watchdog timers, and secure OTP configuration. Its robust architecture supports seamless startup, fault protection, and customizable power sequences, making it suitable for high-end processors in automotive, consumer, and industrial environments.
NXP MPF5024AVNA0ES Power Management IC Specifications:
- Input supply range: 0.4V to 18V
- Regulated output voltage: 0.4V to 1.8V (programmable in steps of 6.25 mV)
- Maximum output current per regulator: 2.5 A
- Buck regulators: Type 1, capable of multitask operation including multiphase configs
- Spread-spectrum clock support for EMI reduction
- Internal voltage references via bandgap
- Thermal shutdown threshold: 155°C to 175°C with hysteresis
- Programmable UV and OV thresholds, debounce timers for voltage monitoring
- External watchdog timer with adjustable timeout (1 ms to 32 s)
- I2C interface supporting high-speed (up to 3.4 MHz) with CRC and secure write features
- Configurable power sequences for startup and shutdown with OTP memory
- Fail-safe and debug modes including TBB operation and hardwire configurations
- Packaging: HVQFN40 (SOT618-14) with thermal management features
- Environmental operating temperature: -40°C to 125°C, junction max 150°C
- Supports safety integrity levels: ASIL B with extensive fault detection and monitoring
Buy the NXP Series PF5024 High-Performance PMIC: MPF5024AVNA0ES
Enhance your system's reliability with the NXP PF5024 high-performance power management IC. Featuring multiple buck regulators, safety monitoring, and advanced fault protection, it ensures seamless operation in automotive, consumer, and industrial applications. Its programmable sequences, spread-spectrum clock, and secure OTP configuration provide tailored power solutions. Designed for high efficiency and safety compliance, this versatile PMIC delivers robust performances in demanding environments. Purchase online today for superior integration and system stability.
Buy NXP PF5024AVNA0ES now and experience unmatched reliability and performance for automotive and industrial high-end systems.
Frequently Asked Questions
Where can I buy NXP MPF5024AVNA0ES?
You can click on the BUY or RFQ button to purchase MPF5024AVNA0ES from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPF5024AVNA0ES?
You can download the MPF5024AVNA0ES datasheet or visit the NXP website for support.
Who is the manufacturer of MPF5024AVNA0ES?
NXP
