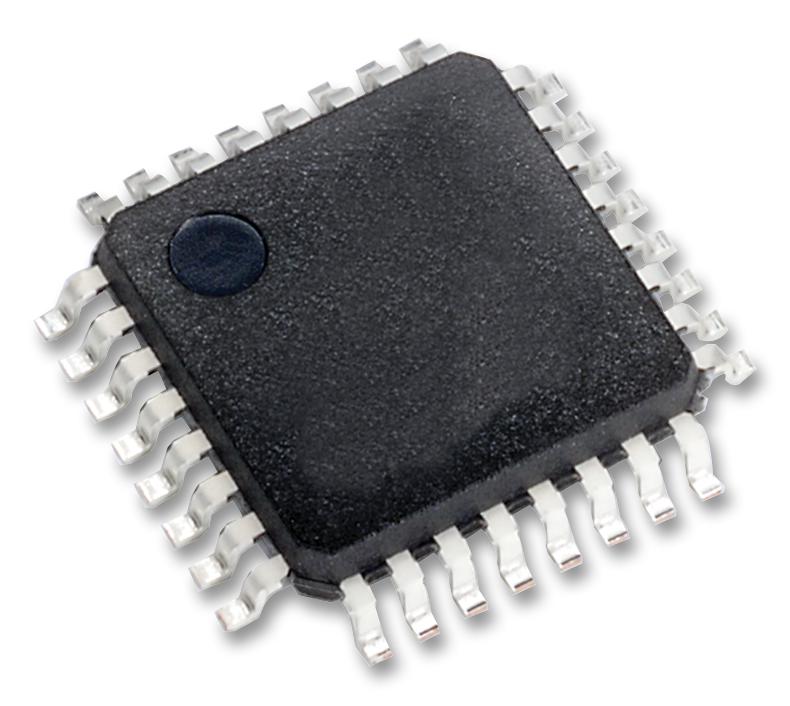

NXP MC34910G5AC Automotive System Basis Chip
The MC34910G5AC is a highly integrated automotive and industrial system basis chip featuring LIN protocol communication, high-side drivers with PWM, comprehensive fault detection, integrated voltage regulators, multiple low-power modes including Sleep and Stop, and SPI control for diagnostics and configuration. It provides a LIN transceiver, a switchable Hall sensor supply, voltage and temperature sensing, and watchdog functionality, making it suitable for body electronics, power switches, and sensor interfacing in automotive electronics. Its robust design supports automotive voltage conditions and offers extensive diagnostic and fault management features for reliable system operation.
NXP MC34910G5AC Automotive System Basis Chip Specifications:
- LIN protocol compliance: 2.0, 2.1, SAEJ2602-2
- LIN transceiver data rate: up to 100 kbps
- SPI interface: full-duplex at up to 4.0 MHz
- High-side switches: two 50 mA/60 mA with PWM capability
- Voltage regulator: 5.0 V output, dropout voltage 0.1 to 0.25 V, output current limited to 200 mA
- Supply voltage range: Vsup (VS1, VS2): 5.5 V to 18 V, transient up to 40 V
- Voltage sense input: scaled to VDD, withstands up to +40 V/-27 V
- Operating temperature: -40°C to 125°C (G5), -40°C to 85°C (BAC)
- Fault detection: overvoltage, undervoltage, overtemperature, short-circuit, open load
- Low-power modes: Sleep and Stop with wake-up capabilities via LIN, external interrupts, and cyclic sensing
- Internal voltage regulator protects against shorts and thermal shutdown
- Multiple interrupt sources: voltage, temperature, LIN faults, high-side faults, wake-up events
- Analog inputs configurable via SPI, extensive diagnostics, and fault reporting
Buy the NXP MC34910G5AC – Reliable Automotive Power and Interface Module for Industrial Applications
Discover the MC34910G5AC system basis chip – a comprehensive automotive electronics solution featuring LIN protocol, high-side drivers, voltage regulation, fault diagnostics, and low-power modes. Ideal for body control modules, sensor interfacing, and power switching. Easy SPI control allows seamless diagnostics and configuration, ensuring reliable operation under automotive voltage conditions. Optimize your system with robust features including thermal shutdown, overvoltage protection, and wake-up capabilities through LIN, external signals, and cyclic sensing, all in a compact package. Purchase online now for dependable automotive and industrial performance.
Get NXP MC34910G5AC today—built for automotive power management, LIN communication, and long-term reliability.
Frequently Asked Questions
Where can I buy NXP MC34910G5AC?
You can click on the BUY or RFQ button to purchase MC34910G5AC from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC34910G5AC?
You can download the MC34910G5AC datasheet or visit the NXP website for support.
Who is the manufacturer of MC34910G5AC?
NXP
