NXP MC9S08AC60CFUE Microcontroller
The MC9S08AC60 microcontroller features an 8-bit CPU operating up to 40 MHz, supporting multiple power modes including wait and stop modes for low power consumption. It includes a 16-channel 10-bit ADC, dual serial communication interfaces (SCI), SPI, and IIC modules, along with flexible Timer/PWM channels. The device supports advanced features such as hardware CRC, security options, multiple interrupt sources, and extensive I/O ports with configurable pullups, slew rate, and drive strength. Available in compact packages with integrated system control and debugging interfaces, ideal for embedded applications requiring high performance and versatile I/O control.
NXP MC9S08AC60CFUE Microcontroller Specifications:
- CPU Frequency: up to 40 MHz
- Memory: Flash 49,152 bytes, RAM 2 KB
- Analog-to-Digital Converter: 16 channels, 10-bit resolution
- Serial Interfaces: 2 UARTs (SCI), SPI, IIC
- Timers: 2 x 2-channel TPM, 6-channel 16-bit
- Power Modes: Run, Wait, Stop2, Stop3
- I/O Ports: PTA-PTG, total 54 pins, configurable pullups, slew rate, drive strength
- Operating Voltage Range: 2.7V to 5.5V
- Reset Sources: Power-on, Low-voltage, External RESET, COP watchdog, illegal opcode
- Security: Optional backdoor key, block protection, secure memory regions
- Packages: 64-pin QFP, 64-pin LQFP, 48-pin QFN, 44-pin LQFP, 32-pin LQFP
- Debug: Background debug controller (BDC), active debug mode
- Additional features: CRC module, internal clock generator (ICG), low-power operation
- RoHS compliant, Pb-free options available

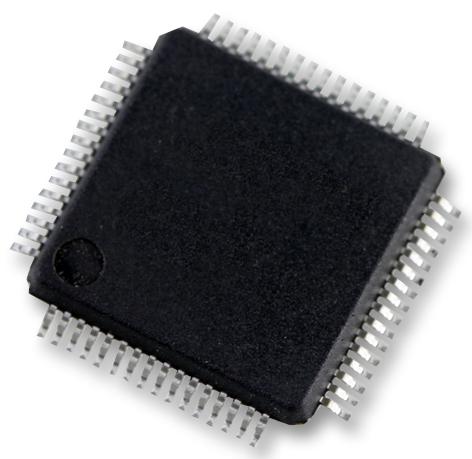

Buy the Freescale Series MC9S08AC60 Microcontroller: MC9S08AC60
Get your Freescale MC9S08AC60 microcontroller online today and enjoy fast shipping and reliable performance. Equipped with a 40 MHz CPU, 16 channels of 10-bit ADC, dual serial interfaces, multiple power modes, and extensive I/O options, this high-performance MCU is ideal for embedded applications. Its secure memory features, advanced debugging interface, and compact packages make it perfect for designs requiring versatility and efficiency. Order now and enhance your project with trusted quality and technical excellence from Freescale.
Order your Freescale MC9S08AC60 microcontroller today and give your embedded projects the high-performance, low-power control they deserve.
Frequently Asked Questions
Where can I buy NXP MC9S08AC60CFUE?
You can click on the BUY or RFQ button to purchase MC9S08AC60CFUE from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC9S08AC60CFUE?
You can download the MC9S08AC60CFUE datasheet or visit the NXP website for support.
Who is the manufacturer of MC9S08AC60CFUE?
NXP
