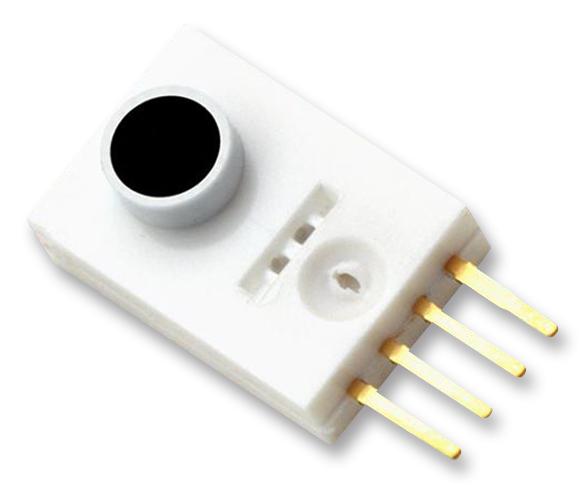

NXP MPX2300DT1 Medical Pressure Sensor
The MPX2300DT1 pressure sensor is designed for medical applications, including invasive blood pressure monitoring, infusion pumps, and patient monitoring. Crafted from biomedically approved materials, it features integrated temperature compensation, calibration, and a polysulfone case with a sterilizable gel coating that isolates electrical parts from fluids. Its compact Chip Pak package enhances system design flexibility and cost efficiency. Suitable for differential pressure measurement with a range up to 40 kPa, this miniature sensor is ideal for medical diagnostics and critical fluid control systems, ensuring precision and reliability in healthcare environments.
NXP MPX2300DT1 Medical Pressure Sensor Specifications:
- Maximum pressure: 125 PsI
- Storage temperature: -25°C to +85°C
- Operating temperature: +15°C to +40°C
- Pressure range: 0 to 300 mmHg
- Supply voltage: 6.0 to 10 V
- Supply current: approximately 1.0 mA
- Zero pressure offset: -0.75 to 0.75 mV
- Sensitivity: 4.95 to 5.05 mV/V/mmHg
- Full-scale span: 2.976 to 3.036 mV
- Linearity + hysteresis: ±15% of full scale
- Response time: 1.0 ms
- Pinout: 1 - Vs, 2 - Vout+, 3 - Vout-, 4 - GND
Buy the Freescale Series MPX2300DT1 Differential Pressure Sensor: MPX2300DT1
Order the Freescale MPX2300DT1 pressure sensor online today and enhance your medical diagnostic systems with accurate differential pressure measurement. This miniature, reliable device features integrated temperature compensation, calibration, and a biocompatible polysulfone housing suitable for sterilization. Its compact Chip Pak package ensures flexible system integration, making it ideal for invasive blood pressure, infusion pumps, and patient monitoring applications. Invest in trusted medical-grade sensor technology designed for durability and precision in critical healthcare environments.
Get Freescale MPX2300DT1 today—built for precision and long-lasting durability in medical pressure monitoring.
Frequently Asked Questions
Where can I buy NXP MPX2300DT1?
You can click on the BUY or RFQ button to purchase MPX2300DT1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPX2300DT1?
You can download the MPX2300DT1 datasheet or visit the NXP website for support.
Who is the manufacturer of MPX2300DT1?
NXP
