NXP MRFE6VP5600HR6 RF Power Transistor
The MRFE6VP5600H series comprises high ruggedness RF power transistors designed for demanding applications across broad frequency ranges from 1.8 to 600 MHz. This device offers 600 watts pulsed peak power at a 20% duty cycle, capable of handling load mismatch of 65:1 VSWR at 50 Vdc, providing excellent performance in industrial, broadcast, aerospace, and mobile radio applications. It features an integrated ESD protection, RoHS compliance, and can be used in single-ended or push-pull configurations, making it ideal for linear and solid-state RF amplification needs.
NXP MRFE6VP5600HR6 RF Power Transistor Specifications:
- Frequency Range: 1.8-600 MHz
- Pulsed Power: 600 Watts Peak at 20% Duty Cycle
- Load Mismatch Tolerance: 65:1 VSWR at 50 Vdc, 230 MHz
- Drain-Source Voltage: 0.5 to +130 V
- Gate-Source Voltage: -6.0 to +410 V
- Junction Temperature: up to 225°C
- Total Dissipation: 1667 W at 25°C
- Case Operating Temperature: Up to 150°C
- Thermal Resistance, Junction to Case: 0.022 to 0.12 °C/W
- ESD Protection: Human Body Model Class 2, Machine Model B, Charge Device Model IV
- Package: Non-JEDEC, Various dimensions, RoHS compliant, Tape and Reel included

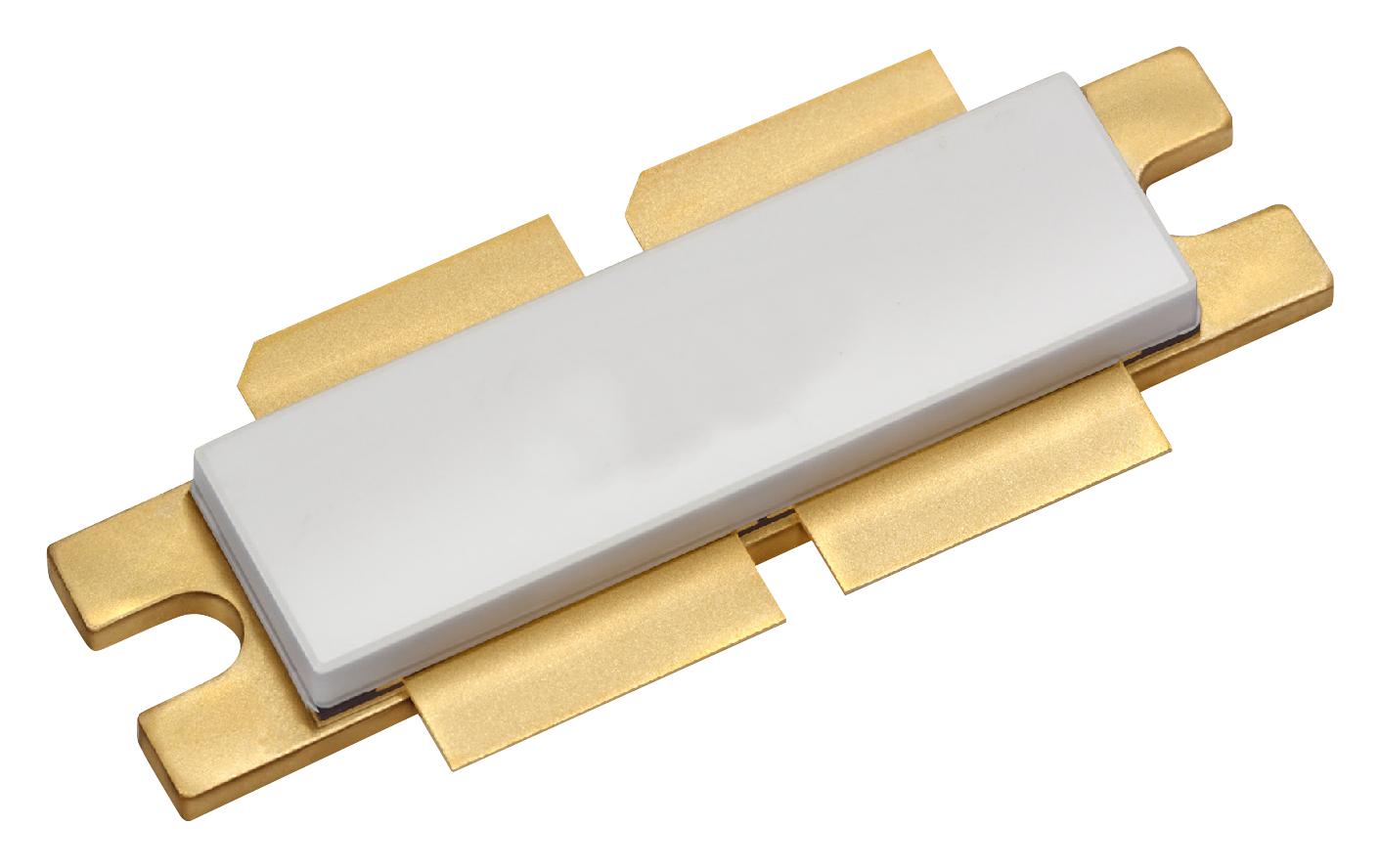

Buy the Buy Freescale RF Power Transistor Part Number MRFE6VP5600HR6 Online
Purchase the Freescale RF Power Transistor MRFE6VP5600HR6 online today to enhance your RF amplification systems. Designed for high ruggedness and broad frequency range, it delivers 600W pulsed peak power with excellent load mismatch tolerance of 65:1 VSWR at 50Vdc. Suitable for industrial, broadcast, aerospace, and mobile radio applications, this device features integrated ESD protection, RoHS compliance, and flexible configurations in a non-JEDEC package. Invest now for dependable, high-performance RF amplification solutions for your critical projects.
Order your Freescale series MRFE6VP5600HR6 high power RF transistor today and secure reliable performance for demanding broadcast, industrial, and aerospace projects.
Frequently Asked Questions
Where can I buy NXP MRFE6VP5600HR6?
You can click on the BUY or RFQ button to purchase MRFE6VP5600HR6 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MRFE6VP5600HR6?
You can download the MRFE6VP5600HR6 datasheet or visit the NXP website for support.
Who is the manufacturer of MRFE6VP5600HR6?
NXP
