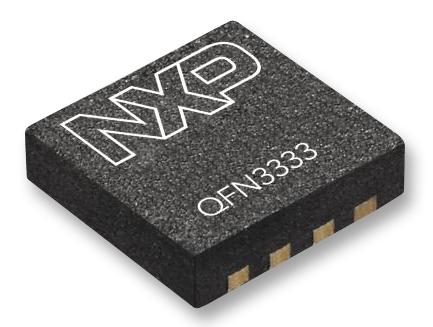

NXP NX3L2G384GM125 Dual Analog Switch
The NX3L2G384GM125 is a dual low-ohmic single-pole single-throw analog switch designed for high-performance signal switching in portable and electronic applications. Featuring low ON resistance (0.50 Ω at Vcc = 4.3 V) and high noise immunity, it supports a wide supply voltage range from 1.4 V to 4.3 V. The device boasts excellent ESD protection, CMOS low-power operation, and can handle continuous currents up to 50 mA. Its compact SOT902-2 package (1.6 x 1.6 x 0.5 mm) makes it ideal for space-constrained designs requiring reliable analog switching over temperatures from -40°C to +125°C.
NXP NX3L2G384GM125 Dual Analog Switch Specifications:
- Supply Voltage Range: 1.4 V to 4.3 V
- ON Resistance: 0.50 Ω at Vcc = 4.3 V
- Maximum Continuous Current: 50 mA
- Low ON Resistance Flatness: 0.13 Ω
- ESD Protection: >7500 V HBM, >200 V MM, >1000 V CDM
- Switching Time: Enable ~24-25 ns, Disable ~7-8 ns
- Temperature Range: -40°C to +125°C
- Package: SOT902-2, 8 terminals, size 1.6 x 1.6 x 0.5 mm
- Input Voltage Enable (nE): 0 V (LOW) to Vcc (HIGH)
- Channel Input/Output: 1Y, 1Z, 2Y, 2Z with independent control
- Power Dissipation: Up to 250 mW at Tamb = 125°C
- Leakage Currents: ON (50-500 nA), OFF (25-250 nA)
- Capacitances: ON-state 110 pF, OFF-state 35 pF, Input Capacitance 1 pF
- Designed for high noise immunity and low power consumption, suitable for portable and high-speed switching applications.
Buy the Buy NXP Analog Switch Part Number NX3L2G384GM125 Online
Order the NXP NX3L2G384GM125 online today and enhance your electronic projects with this high-performance dual analog switch. Its wide supply range from 1.4 V to 4.3 V, low ON resistance of just 0.50 Ω at Vcc=4.3 V, and excellent ESD protection ensure reliable signal switching in portable and embedded systems. Compact and easy to integrate, this device supports applications requiring fast switching times, minimal signal attenuation, and operation across a broad temperature range from -40°C to +125°C. Ideal for space-constrained designs needing durable, efficient, and high-speed analog switching solutions.
Buy NXP NX3L2G384GM125 now and experience unmatched reliability and performance in signal switching and portable electronics.
Frequently Asked Questions
Where can I buy NXP NX3L2G384GM125?
You can click on the BUY or RFQ button to purchase NX3L2G384GM125 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NX3L2G384GM125?
You can download the NX3L2G384GM125 datasheet or visit the NXP website for support.
Who is the manufacturer of NX3L2G384GM125?
NXP
