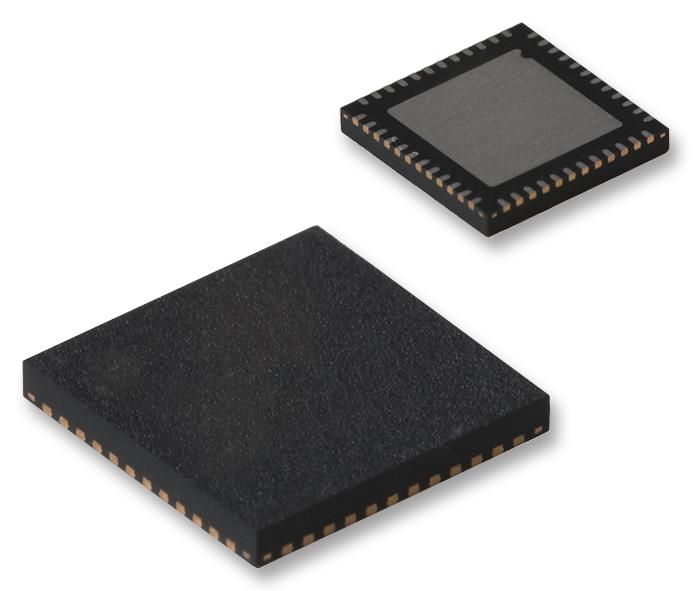

NXP PTN3381BBS518 HDMI DVI Level Shifter
The PTN3381B is a high-speed, integrated HDMI and DVI level shifter capable of converting four lanes of low-swing AC-coupled differential input signals to HDMI v1.3a and DVI v1.0 compliant outputs, supporting up to 1.65 Gbit/s per lane, with extended performance up to 2.25 Gbit/s with pre-emphasis. It features an onboard 5 V regulator, active DDC buffering with rise time acceleration, and HDMI dongle detection via internal I2C ROM. Its compact HVQFN48 package suits high-density applications requiring reliable level shifting and low power operation.
NXP PTN3381BBS518 HDMI DVI Level Shifter Specifications:
- Supports HDMI v1.3a and DVI v1.0 standards
- Supports data rates up to 1.65 Gbit/s per lane, extended to 2.25 Gbit/s with pre-emphasis
- Four differential input lanes, AC-coupled, low-swing signals
- Differential outputs compliant with HDMI and DVI electrical specs
- Integrated 50 Q termination resistors for differential inputs
- Onboard 5 V DC regulator with only two external capacitors
- Active DDC buffer with rise time acceleration allows for long cable drive up to 18 meters
- Includes HDMI dongle detect via internal I2C ROM responding at address 81h
- Supports active low output enable (OE_N) for power saving, with high-impedance state
- Supports DDC level shifting from 3.3 V source to 5 V sink with rise time acceleration
- Back-drive protection on sink-side terminals prevents current flow when unpowered
- Compact HVQFN48 package (7 x 7 x 0.85 mm), with thermal pad for enhanced heat dissipation
- Operating temperature range: -40°C to +85°C
- Power consumption approximately 100 mW at 5 V regulator output
- Electrostatic discharge tolerance: 4 kV HBM, 1 kV CDM
- Supports power-down modes and load regulation for stable operation
