NXP QN9030HN001Z Low Power Wireless Microcontroller
The QN9030 is an ultra-low power, high-performance microcontroller supporting Bluetooth Low Energy 5.0, ideal for IoT, wearables, and wireless applications. Featuring an Arm Cortex-M4 core operating up to 48 MHz, it integrates 640KB Flash, 152KB RAM, multiple peripherals including UART, SPI, I2C, ADC, and a PDM microphone interface. It supports simultaneous connections, NFC tag, and RF functionality with low current consumption in sleep, deep sleep, and power-down modes. The device is housed in a compact HVQFN40 package, RoHS compliant, and optimized for battery-powered, wireless, and sensor interfacing solutions.
NXP QN9030HN001Z Low Power Wireless Microcontroller Specifications:
- Core: ARM Cortex-M4 operates at 48 MHz
- Flash memory: 640 KB
- RAM: 152 KB
- Peripheral interfaces: UART, SPI, I2C, ADC, PDM microphone
- Bluetooth LE 5.0 compliant, supports 8 simultaneous connections
- Embedded NFC tag (QN9030T variant)
- Package: HVQFN40, size: 6 x 6 x 0.85 mm, RoHS compliant
- Power supply: 1.9 V to 3.6 V, ultra-low sleep and deep sleep current modes
- Temperature range: -40°C to +125°C operating, -40°C to +125°C / -40°C to +105°C for variants
- Low-power features: sleep, deep sleep, power-down, deep power-down modes
- Dimensions: 6 mm x 6 mm x 0.85 mm in HVQFN40 package
- Operating temperature: -40°C to +125°C

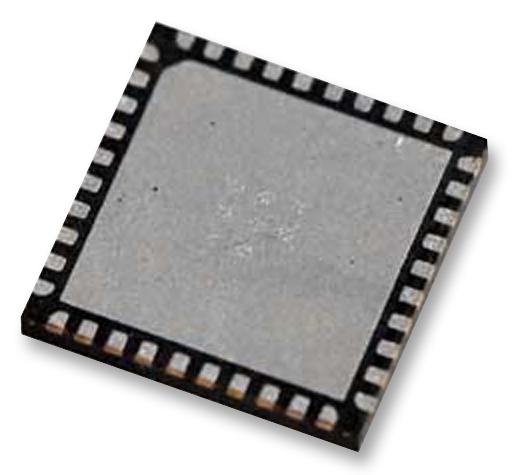

Buy the Buy NXP Low Power Wireless Microcontroller Part Number QN9030HN001Z Online
Discover the NXP QN9030HN001Z Bluetooth Low Energy microcontroller, designed for energy-efficient wireless applications. Features include an ARM Cortex-M4 core running at 48 MHz, 640KB Flash, 152KB RAM, and multiple communication interfaces like UART, SPI, and I2C. It supports Bluetooth LE 5.0, NFC tag, and optimized for battery-powered IoT devices with low sleep currents and flexible power modes. Compact HVQFN40 package ensures easy integration into space-constrained designs. Perfect for IoT, wearables, and wireless sensor applications seeking low power consumption and high performance.
Order your NXP QN9030HN001Z Bluetooth LE microcontroller today and benefit from high performance, NFC support, and ultra-low power design for IoT solutions.
Frequently Asked Questions
Where can I buy NXP QN9030HN001Z?
You can click on the BUY or RFQ button to purchase QN9030HN001Z from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part QN9030HN001Z?
You can download the QN9030HN001Z datasheet or visit the NXP website for support.
Who is the manufacturer of QN9030HN001Z?
NXP
