NXP NX5L2750CGUX Analog Switch
The NX5L2750C is a dual low-ohmic analog switch capable of handling negative swing audio signals without a coupling capacitor. Suitable for use as an analog or digital 2:1 multiplexer/demultiplexer, each switch features a digital select input, independent inputs/outputs, and a common I/O. It operates over a voltage range of 1.8 V to 5.0 V, with low ON resistance, high bandwidth, and low power consumption. Designed for mobile, communication, and consumer applications, it offers Schmitt trigger inputs, break-before-make switching, and robust ESD protection from static discharge, ensuring reliable performance across -40°C to +85°C.
NXP NX5L2750CGUX Analog Switch Specifications:
- Supply voltage range from 1.8 V to 5.0 V
- ON resistance: 0.8Ω typical
- Bandwidth: 100 MHz
- Low power CMOS technology
- Control logic at 1.8 V and 3.6 V
- Break-before-make switching
- ESD protection exceeds 4000 V (HBM), 1000 V (CDM)
- Operating temperature: -40°C to +85°C

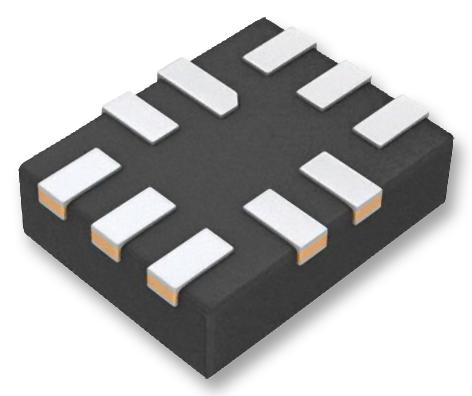

- Package: XQFN10, body size 1.40 x 1.80 x 0.50 mm
- Input voltage: 0–5.0 V
- Input/output capacitance: 35–75 pF
- Maximum voltage across switch: -4.0 V to +0.5 V
- Supply current: 50 mA max at 25°C
- Storage temperature: -65°C to +150°C
Buy the Buy NXP NX5L2750C Part Number NX5L2750CGUX Online
Purchase the NXP NX5L2750C online today to leverage its low ON resistance, wide voltage operation, and excellent ESD protection. Ideal for portable media, communication devices, and consumer electronics, this high-performance analog switch supports negative swing audio signals without the need for coupling capacitors. With a compact XQFN10 package, low power consumption, and robust static discharge protection, it ensures reliable operation across -40°C to +85°C, making it the perfect choice for demanding digital and audio switching applications.
Buy NXP NX5L2750C now and experience unmatched reliability and high-speed performance in audio and digital switching applications.
