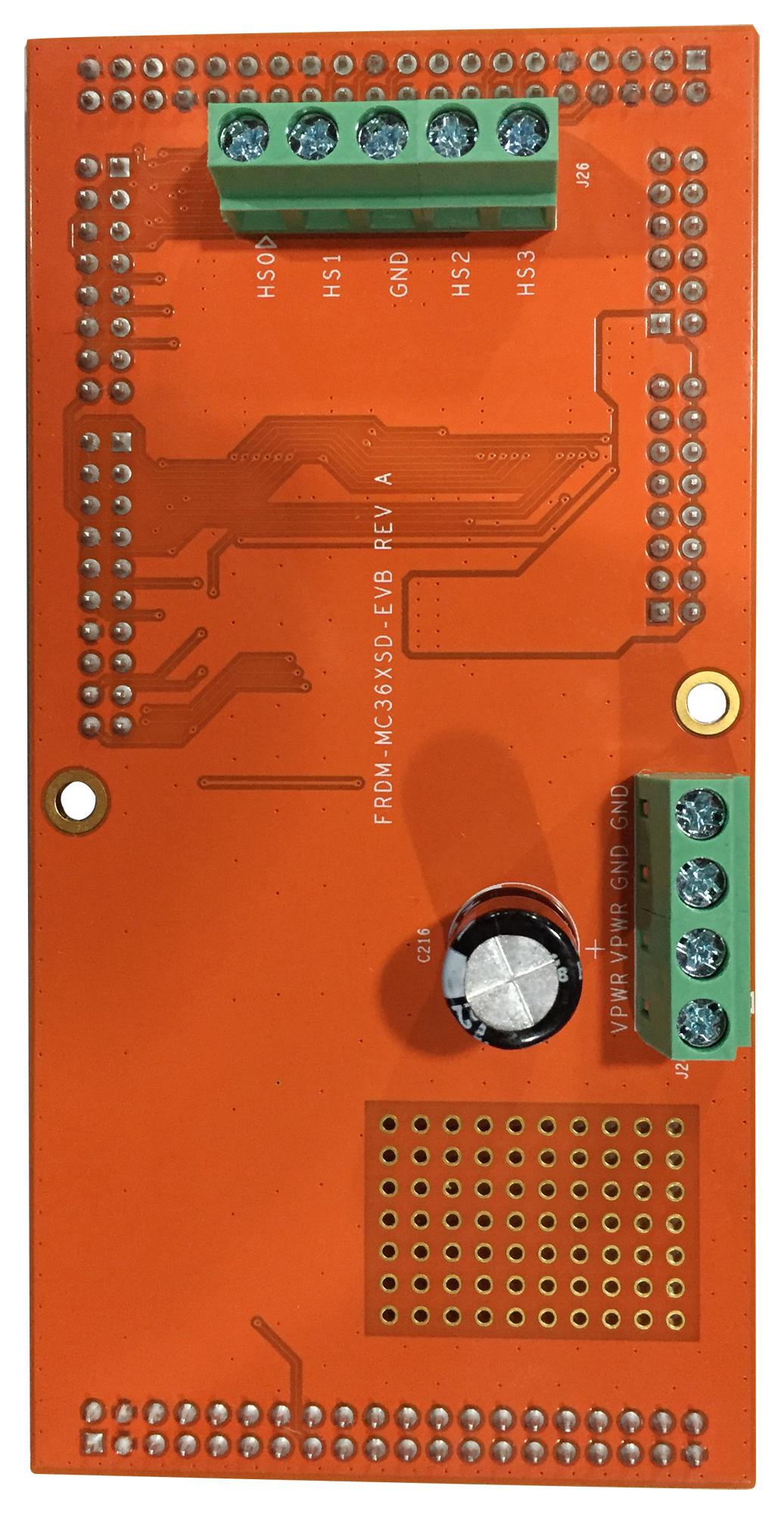

NXP FRDMMC36XSDEVB High Side Switch Module
The NXP MC36XSD is a family of dual high side switches designed for 36V systems, controlled via a development demo with FRDM-KL25Z. This demo features two MC36XSD chips supporting four high side switches, enabling current measurement and control. The setup involves installing drivers, updating the OpenSDA application, downloading firmware, and using serial communication to monitor load currents on four channels. Ideal for automation, control systems, and electronic projects requiring reliable high voltage switching.
NXP FRDMMC36XSDEVB High Side Switch Module Specifications:
- Supports 36V systems with dual high side switches
- Includes two MC36XSD chips supporting four switches
- Control via USB and serial communication
- Compatibility with FRDM-KL25Z development board
- Supports current measurement on four channels
- Includes driver installation and OpenSDA firmware update
- Serial communication with adjustable baud rate
- Control multiple channels dynamically during operation
- Designed for automation, control, and electronic switching applications
- Voltage Ratings: Up to 36V DC
- Switching current depends on specific load conditions
- Supported firmware: Vision project for firmware control
- Hardware support for high side switching in embedded systems
Buy the NXP Series MC36XSD EVAL: FRDMMC36XSDEVB
Order the high side switch module online to integrate reliable 36V switching, real-time current measurement, and easy control within your automation and control systems. This versatile module, based on the NXP MC36XSD, offers seamless USB connectivity, support for multiple channels, and straightforward firmware updates, making it ideal for electronic control applications, energy management, and industrial automation. Enhance your projects with this robust solution that guarantees efficient performance and flexible operation in demanding engineering environments.
Buy NXP MC36XSD EVB now and experience reliable high voltage switching with current measurement in your automation projects.
Frequently Asked Questions
Where can I buy NXP FRDMMC36XSDEVB?
You can click on the BUY or RFQ button to purchase FRDMMC36XSDEVB from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part FRDMMC36XSDEVB?
You can download the FRDMMC36XSDEVB datasheet or visit the NXP website for support.
Who is the manufacturer of FRDMMC36XSDEVB?
NXP
