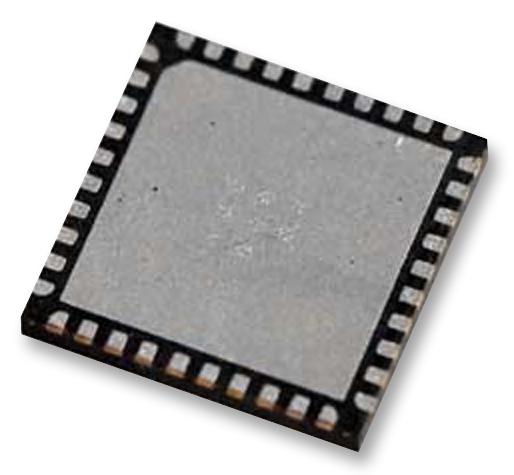

NXP QN9090THN001Z Bluetooth Microcontroller
The QN9090 is an ultra-low power, high performance Bluetooth Low Energy 5.0 microcontroller supporting up to eight simultaneous connections. It features a 2.4 GHz transceiver, embedded Flash memory (640 KB), 152 KB RAM, and analog/digital peripherals including PWM channels, timers, RTC, USARTs, SPI, I2C, and an integrated NFC tag on the T variant. Designed for energy-efficient IoT applications, it supports advanced security features like AES encryption, hardware RNG, and SHA hashing. Its compact HVQFN40 package makes it suitable for battery-powered, wireless devices with low power consumption and robust connectivity.
NXP QN9090THN001Z Bluetooth Microcontroller Specifications:
- Package: 6 x 6 mm HVQFN40, 0.5 mm pitch
- Processor: Arm Cortex-M4, 32-bit, up to 48 MHz
- Memory: 640 KB embedded Flash, 152 KB SRAM (Qn9090), 320 KB Flash, 88 KB SRAM (Qn9030)
- Radio: Bluetooth LE 5.0 compliant, 2.4 GHz, support for high data rate (2 Mbps), transmit power up to +11 dBm
- Connectivity: 10 PWM channels, 2 USARTs, 2 SPI, 2 I2C, NFC Tag (Qn9090T & Qn9030T)
- Analog: 12-bit ADC, temperature sensor, analog comparator, voice activity detector
- Security: AES-128/256, hardware RNG, SHA-1/256, 128-bit unique AES key
- Power: Ultra-low current modes, deep-sleep at 350 nA, supports sleep, deep sleep, power-down, and deep power-down modes
- Operating voltage: 1.9 V to 3.6 V; temperature: -40°C to +125°C
- Certifications: FCC, IC, ETSI compliant, RoHS
Buy the Buy NXP QN9090THN001Z Part Number Online
Get the NXP QN9090THN001Z Bluetooth Low Energy microcontroller online today. Designed for energy-efficient IoT applications, it features robust BLE 5.0 support, NFC integration, advanced security, and versatile peripherals. Its compact HVQFN40 package and ultra-low power modes make it ideal for battery-powered wireless devices. Secure your IoT projects with fast, reliable connectivity and high performance. Shop now and enjoy fast delivery, competitive prices, and technical support for your innovative designs.
Order your NXP QN9090THN001Z Bluetooth Microcontroller today and ensure robust wireless connectivity with advanced security features.
Frequently Asked Questions
Where can I buy NXP QN9090THN001Z?
You can click on the BUY or RFQ button to purchase QN9090THN001Z from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part QN9090THN001Z?
You can download the QN9090THN001Z datasheet or visit the NXP website for support.
Who is the manufacturer of QN9090THN001Z?
NXP
