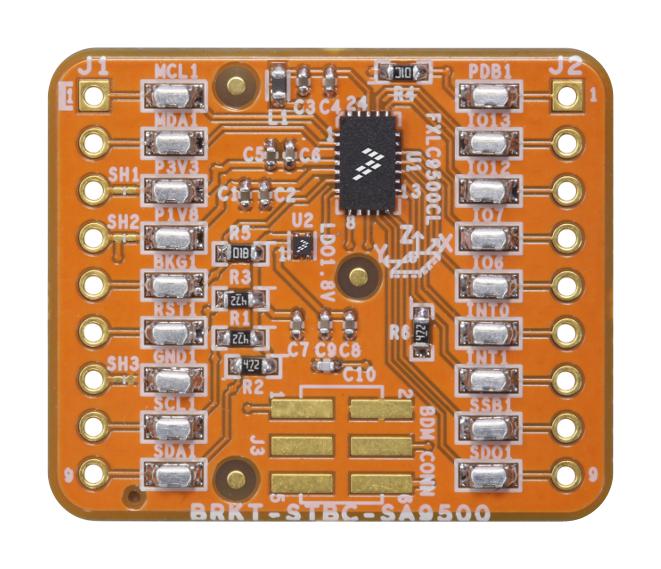

NXP BRKTSTBCSA9500 Motion Sensor Module
The FXLC95000CL is a sophisticated, high-precision motion-sensing platform integrating a 3-axis MEMS accelerometer and a 32-bit ColdFire MCU for autonomous sensing and decision-making. It supports tilt calibration, gesture recognition, pedometer functions, and can interface with multiple sensors via I2C and SPI. Designed for low power consumption with sleep modes, this compact device features versatile connectivity, external analog inputs, and robust power management, making it ideal for motion detection, activity monitoring, and sensor hub applications in medical, consumer, and industrial devices.
NXP BRKTSTBCSA9500 Motion Sensor Module Specifications:
- 3-axis low noise accelerometer
- +2.9, +4.9, +8 g configurable ranges
- Up to 16-bit resolution
- 32-bit ColdFire V1 CPU with MAC hardware
- 128K Flash, 16K RAM, 16K ROM
- Analog-to-digital converter data formats: 10-, 12-, 14-, 16-bit
- Serial connectivity: Master/Slave I2C and SPI interfaces
- Operating voltage: 1.71 to 3.6 V
- Operating temperature: -40°C to +85°C
- Small 3mm x 5mm x 1mm 24-pin LGA package
- Supports external sensors like magnetometers, gyroscopes, pressure and humidity sensors
- Power modes: Sleep, deep-sleep, and normal operation
- External differential analog inputs for versatile sensing
- Programmable delay blocks and timers for external event scheduling
- Flash endurance: 20,000 cycles
- RoHS compliant, robust power management
- Compatible with CodeWarrior development environment
- Includes ROM-based utility functions for firmware programming
Buy the Buy Freescale FXLC95000CL Part Number BRKTSTBCSA9500 Online
Discover the high-precision motion sensing capabilities of the FXLC95000CL. This versatile platform combines accelerometer sensors and a 32-bit MCU for intelligent activity recognition, tilt calibration, and sensor hub features. Its compact, low-power design supports external sensor interfaces and is ideal for consumer electronics, industrial monitoring, and medical activity tracking. Purchase online now to leverage advanced sensing technology, efficient power management, and seamless integration into your projects for reliable, real-time motion detection and analysis.
Buy Freescale FXLC95000CL BRKTSTBCSA9500 now and experience unmatched reliability and performance for high-precision motion sensing applications.
Frequently Asked Questions
Where can I buy NXP BRKTSTBCSA9500?
You can click on the BUY or RFQ button to purchase BRKTSTBCSA9500 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part BRKTSTBCSA9500?
You can download the BRKTSTBCSA9500 datasheet or visit the NXP website for support.
Who is the manufacturer of BRKTSTBCSA9500?
NXP
