NXP MC9S08AC48CFJE 8-bit Microcontroller
The MC9S08AC48 family is a high-performance 8-bit microcontroller designed for cost-sensitive applications, featuring up to 48 KB of Flash memory, 4 KB of RAM, and multiple communication interfaces like UART, IIC, and SPI. It includes a 16-channel 10-bit ADC, multiple timers, and versatile I/O ports with configurable pull-up, slew rate, and drive strength settings. The device supports low-voltage operation, various power modes including wait and stop, and extensive reset and interrupt sources for embedded system reliability and flexibility.
NXP MC9S08AC48CFJE 8-bit Microcontroller Specifications:
- FLASH: 48 KB low-power Flash with fast programming and erase, block protection, and security features.
- RAM: 4 KB static RAM for data storage and temporary variables.
- Core: 8-bit HCS08 CPU with 40 MHz maximum frequency for high-speed processing.
- Timers: Three advanced timers (TPM1 with 6 channels, TPM2 and TPM3 with 2 channels each), supporting input capture, output compare, and high-resolution PWM.
- ADC: 16 channels, 10-bit resolution with internal sample and hold, automatic compare, and configurable sampling rates.
- Communication: Up to two UART modules, IIC bus, and SPI interface supporting multi-master, baud rate programmable, and hardware handshaking.
- I/O Ports: Seven ports (PTA–PTG), totaling 54 configurable digital I/O pins with slew rate control, high/low drive strength, internal pull-ups, and external interrupt capabilities.
- Power and Reset: Multiple reset sources (power-on, low-voltage detection, external pin, watchdog), operational in low-voltage conditions, with optional burst programming for FLASH.
- Power Modes: Active run, wait, stop2 (partial power-down, RAM retention), stop3 (all internal circuits powered), with optional active debug in stop modes.
- Package Options: 48-pin LQFP and 44-pin QFN, designed for space-constrained applications with JEDEC standard footprints.

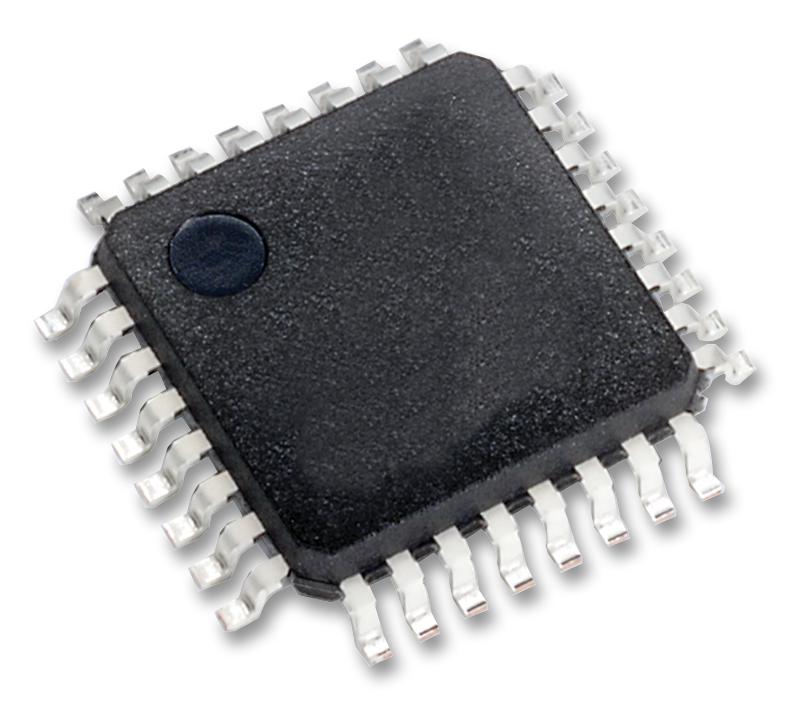

Buy the Buy Freescale MC9S08AC48CFJE 48 KB Flash Microcontroller Part Number MC9S08AC48CFJE Online
Discover the Freescale MC9S08AC48CFJE microcontroller, offering 48 KB Flash, 4 KB RAM, 16-channel 10-bit ADC, and multiple UART, IIC, and SPI interfaces. It supports flexible power modes including wait and stop, with integrated low-voltage detection, watchdog, and illegal opcode detection for system reliability. Its 7 I/O ports feature configurable pull-up, slew rate, and drive strength to optimize performance and power consumption. Perfect for embedded systems requiring high reliability, low power, and extensive peripheral support, all in a compact 44-pin package.
Order your Freescale MC9S08AC48CFJE 48 KB Flash Microcontroller today and enjoy reliable performance with versatile I/O, ADC, and multiple communication interfaces for embedded projects.
