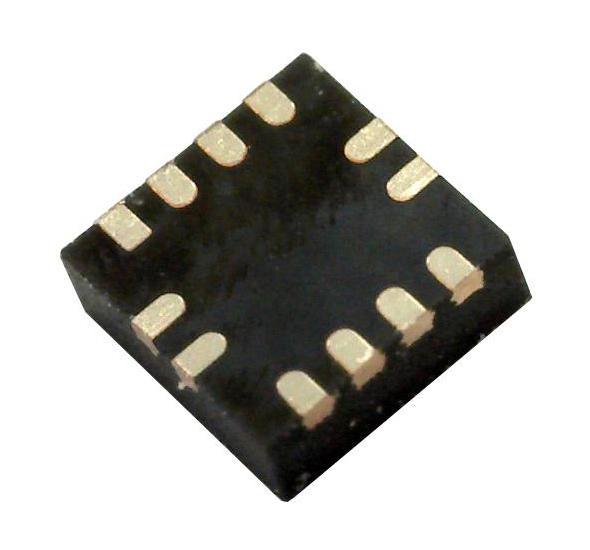

NXP PTN36001HXZ USB 3.0 Redriver
The PTN36001HXZ is a compact, low-power SuperSpeed USB 3.0 redriver IC designed for signal integrity enhancement in mobile and system applications. It performs receive equalization and transmit de-emphasis on each of its two channels, supporting data rates of 5 Gbit/s per channel. The device features adjustable output swing, integrated impedance matching, automatic load detection, and supports deep power-saving modes, making it ideal for laptops, tablets, hub, A/V displays, peripherals, and active cables, ensuring optimal performance across various PCB trace conditions.
NXP PTN36001HXZ USB 3.0 Redriver Specifications:
- Support of two channels for differential signaling at 5 Gbit/s
- Supports USB 3.0 SuperSpeed specification
- Operates from 1.8 V power supply with 200 mW power consumption
- Supports deep power-saving modes (U2/U3 states, no connection detection)
- Supports signal equalization, transmit de-emphasis, output swing adjustment
- Integrated impedance matching resistors on transmit and receive sides
- Supports hot plug detection and load load detection circuitry
- Operating temperature: 0 °C to 85 °C
- Package: X2QFN12 (1.25 x 2.10 x 0.35 mm, 0.4 mm pitch)
- Electrostatic discharge protection >7000 V HBM
- Compliance with JESD 78 Class II and IEC standards
- Supports configuration via C1 and C2 control pins for trace length optimization
- Built-in termination detection for receiver load conditions
- Supports electrical idle, deep power-saving, and active states for power management
