NXP QN9022DY Bluetooth LE System-on-Chip
The QN9022DY is an ultra low power Bluetooth LE system-on-chip solution integrating a high-performance 2.4 GHz RF transceiver, ARM Cortex-M0 MCU, flash memory, and analog/digital peripherals. Designed for wearable electronics, smart accessories, and sensor networks, it supports both master and slave modes, multiple simultaneous links, and a range of communication interfaces including UART, SPI, and I2C. With embedded power management, analog peripherals, and a compact HVQFN40 package, the QN9022DY offers a reliable, energy-efficient platform for Bluetooth Smart applications in various industries.
NXP QN9022DY Bluetooth LE System-on-Chip Specifications:
- Package: HVQFN40, 5 x 5 x 0.85 mm
- Operating voltage: 1.8 V to 3.6 V
- Frequency band: 2400 MHz to 2483.5 MHz
- Tx output power: -20 dBm to +4 dBm
- Rx sensitivity: -93 dBm (DC-DC mode), -95 dBm (non-DC-DC mode)
- MCU: ARM Cortex-M0, 64 kB memory
- Analog inputs: 4 external channels, 10/8-bit SAR ADC
- Communication interfaces: UART, SPI, I2C
- Timers: Multiple PWM, input capture
- Power modes: Deep sleep, sleep, active
- Oscillators: 16/32 MHz crystal, 32.768 kHz crystal and RC oscillators
- Integrated AES-128 encryption coprocessor
- On-chip matching network with supporting inductors and capacitors
- Supported profiles: BLE, GATT, and various industry profiles
- Temperature range: -40°C to +85°C
- Certification: CE, FCC compliant

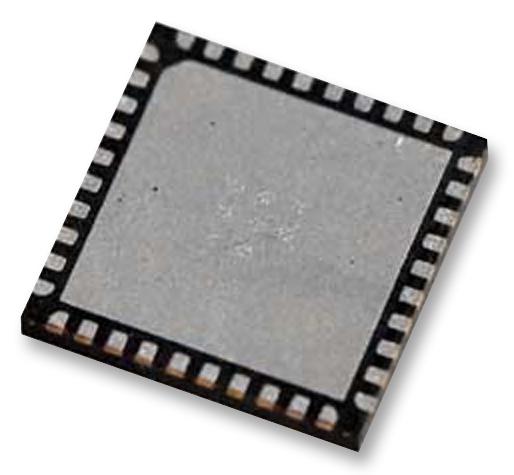

Buy the NXP Series QN9022 Bluetooth LE: QN9022DY
Discover the NXP QN9022DY Bluetooth LE System-on-Chip, optimized for low power consumption and reliable wireless performance. Perfect for wearables, smart accessories, and sensor networks, this compact device integrates RF, MCU, and analog peripherals in a small HVQFN40 package. Its versatile interfaces and robust security features make it an ideal choice for innovative wireless projects. Order online to accelerate your development with this energy-efficient, high-performance Bluetooth Smart solution designed to meet industry standards and industry-specific profiles.
Get NXP QN9022DY today—built for low power, high performance Bluetooth Smart connectivity in compact packages.
Frequently Asked Questions
Where can I buy NXP QN9022DY?
You can click on the BUY or RFQ button to purchase QN9022DY from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part QN9022DY?
You can download the QN9022DY datasheet or visit the NXP website for support.
Who is the manufacturer of QN9022DY?
NXP
