NXP S9S12VRP64F0VLF Automotive Microcontroller
The S9S12VRP64F0VLF is a high-performance 64KB Flash microcontroller designed for automotive relay-based DC motor applications, featuring an integrated 16-bit core, ECC-protected flash memory, flexible memory mapping, multiple communication interfaces including LIN, and robust power management suitable for demanding automotive environments.
NXP S9S12VRP64F0VLF Automotive Microcontroller Specifications:
- Flash Memory: 64KB Program Flash with ECC, 4KB Data Flash with ECC
- Memory Map: P-Flash from 0x30000-0x3FFFF, D-Flash 0x400-0x13FF
- Core: 16-bit with integrated phase-locked loop, frequency multipliers
- Supply Voltage Range: 3.5V to 40V, with typical 5V operation
- Operating Temperature: -40°C to 125°C, certain options up to 150°C
- Power Dissipation: Run current up to 22mA at VDDX=5V, Wait mode current ~15mA
- Peripherals: LIN transceiver, timer modules (TIM0, TIM1), ADC channels, UART, PWM outputs
- Security: Flash security byte, backdoor key access, programmable protection via FPROT and DFPROT

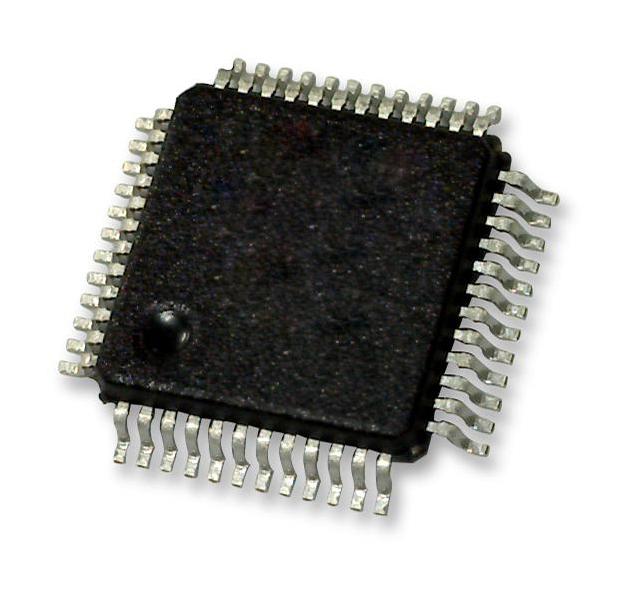

- Package: 48-pin LQFP, 7.0 x 7.0 mm pitch 0.5 mm
Buy the Buy NXP S9S12VRP64F0VLF 64KB Flash MCU Part Number S9S12VRP64F0VLF Online
Order the NXP S9S12VRP64F0VLF online today—designed for automotive relay motor control, this 64KB ECC-protected Flash MCU features LIN communication, integrated timers, ADC channels, and a broad temperature range for reliable vehicle operation. Its robust power management and security features ensure safe, efficient operation in automotive environments. The compact 48-pin LQFP package makes it ideal for space-constrained applications, delivering high performance for automotive ECU and relay driver systems. Enhance your design with this versatile, reliable microcontroller today!
Get NXP S9S12VRP64F0VLF today—optimized for automotive relay DC motor control with ECC protected flash and LIN support in a compact package.
Frequently Asked Questions
Where can I buy NXP S9S12VRP64F0VLF?
You can click on the BUY or RFQ button to purchase S9S12VRP64F0VLF from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part S9S12VRP64F0VLF?
You can download the S9S12VRP64F0VLF datasheet or visit the NXP website for support.
Who is the manufacturer of S9S12VRP64F0VLF?
NXP
