NXP TEA19363T1J Power Controller IC
The TEA19363T is a high-efficiency GreenChip switch-mode power supply controller IC designed for flyback topologies, supporting output voltages from 5 V to 20 V in CV mode and down to 3 V in CC mode. It features active X-capacitor discharge, burst mode at low power, high-voltage start-up, and integrated protections including over-voltage, over-temperature, and safe restart. Manufactured in a SO10 package with optical and low no-load power functions, it ensures reliable, efficient power conversion up to 75 W, suitable for various digital and computing applications.
NXP TEA19363T1J Power Controller IC Specifications:
- Supports output voltage from 5 V to 20 V in CV mode and down to 3 V in CC mode
- Supports switched-mode power supplies in flyback topology

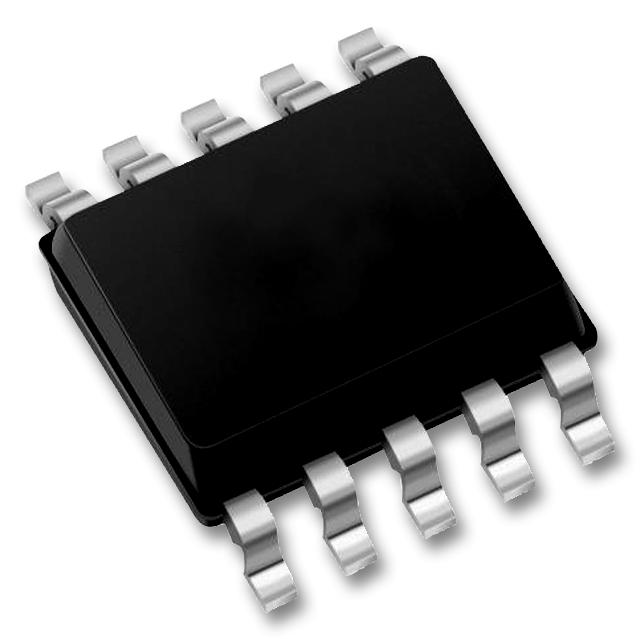

- Manufactured in SO10 package with 10 leads; body width 3.9 mm; thickness 1.35 mm
- Integrated active X-capacitor discharge function
- Supports high power levels with Quasi-Resonant mode and lower power with Burst mode
- Peak current limit, valley switching, and frequency reduction for efficiency
- Protection features include over-voltage, over-temperature, safe restart, and overpower
- Operating temperature range: -40°C to +150°C; junction temperature limit: 150°C
- Bosses for low standby power, minimal audible noise, and high reliability
- Input voltage on HV pin: up to 700 V, with start-up voltage approximately 14 V
Buy the NXP Series TEA19363T Power Controller: 5-20V Flyback: TEA19363T1J
Buy your NXP Series TEA19363T power controller IC online now to enhance your switch-mode power supplies. With support for output voltages from 5 V to 20 V and integrated protections, this IC ensures efficient and reliable operation up to 75 W. It features active X-capacitor discharge, burst mode at low power, and high-voltage start-up for versatile applications. Perfect for digital, computing, and embedded power solutions, order today to benefit from high performance and minimal noise in your power designs.
Order your NXP Series TEA19363T power control IC today and ensure your flyback power supplies deliver maximum efficiency with reliable protections.
Frequently Asked Questions
Where can I buy NXP TEA19363T1J?
You can click on the BUY or RFQ button to purchase TEA19363T1J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part TEA19363T1J?
You can download the TEA19363T1J datasheet or visit the NXP website for support.
Who is the manufacturer of TEA19363T1J?
NXP
