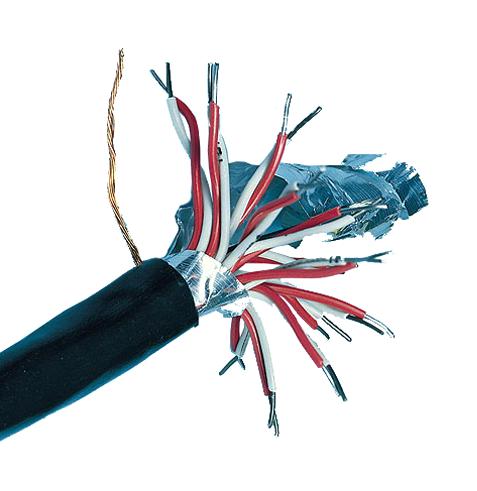

OMEGA 24TX24SPP Multipair Extension Cable
This multipair extension cable features multiple twisted pairs, each insulated with polyvinyl and individually wrapped for protection. It includes a stranded tinned-copper drain wire overlaid with an aluminum-backed polyester shield for electro-static protection. The entire assembly is jacketed with a durable polyvinyl layer, approximately 1.1 mm thick, providing resistance at temperatures up to 105°C. Standard color coding facilitates easy identification of pairs. Custom options include FEP insulated, overbraided, and two-pair designs, suitable for industrial and communication applications.
OMEGA 24TX24SPP Multipair Extension Cable Specifications:
- Number of Pairs: 4, 8, 12, 16, 20, 24 options available
- Conductor Material: Stranded tinned-copper, copper, or Constantan
- Insulation: Polyvinyl, with optional FEP or overbraided insulation
- Shielding: Aluminum-backed polyester film for electro-static protection
- Jacket Thickness: Approximately 1.1 mm (0.045 inches)
- Temperature Rating: Up to 105°C (221°F)
- Cable Diameter: Varies with number of pairs, approx. 8.4mm to 17mm
- Bending Radius: 6-14 times overall diameter depending on the cable type
- Color Coding: Standard ANSI coding for easy pairing identification
- Minimum Length: 7.5 meters (25 feet)
- Customizable: Available with specialized insulation and designs
- Application: Suitable for industrial machinery, control circuits, communication systems
Buy the Generic Multipair Extension Cable – Reliable Industrial Wiring for Industrial Applications
Order our high-quality multipair extension cable online to ensure reliable performance in industrial control systems and communication setups. Designed with twisted pairs, polyvinyl insulation, electro-static shielding, and a durable jacket, this cable withstands temperatures up to 105°C. It features easy color coding for simple identification and is available with custom insulation options, including FEP and overbraided designs. Purchase flexible lengths starting from 7.5 meters (25 feet) for professional wiring, automation, and control applications, ensuring long-lasting, dependable connectivity in demanding environments.
Get Electronic Extension Cable today—built for precision, durability, and versatile industrial wiring needs.
Frequently Asked Questions
Where can I buy OMEGA 24TX24SPP?
You can click on the BUY or RFQ button to purchase 24TX24SPP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part 24TX24SPP?
You can download the 24TX24SPP datasheet or visit the OMEGA website for support.
Who is the manufacturer of 24TX24SPP?
OMEGA
