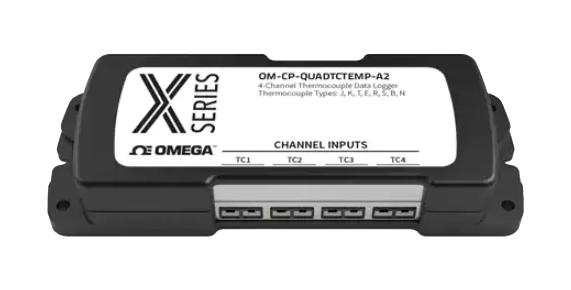

OMEGA OMCPQUADTCTEMPA2 Thermocouple Data Logger
The OM-CP-TCTempX series is a four-channel thermocouple data logger designed for precise temperature monitoring. It features a reading rate of up to 4Hz and supports various thermocouple types (J, K, T, E, R, S, B, N). The device offers high memory capacity, with over 524,000 readings per channel, and fast data download speeds. It includes individual cold junction compensation for each channel to enhance accuracy and response time. Each channel can be named for easy identification, and users can enable or disable channels to maximize memory use. The data logger features open-channel detection and automatic annotation if a probe is removed during the logging process. Powered by an external source or a user-replaceable 9V lithium battery with an average life of 18 months, it is housed in a durable black anodized aluminum enclosure. The device is compatible with Windows XP SP3, 7, 8, and 10, and includes a USB-A to Micro USB cable, universal power adapter, and a calibration certificate. It is suitable for remote or multi-point temperature monitoring, with simple setup and minimal long-term maintenance.
OMEGA OMCPQUADTCTEMPA2 Thermocouple Data Logger Specifications:
- Channel count: 4, 8, 12 or 16 channels available
- Maximum sampling rate: Up to 4 Hz
- Thermocouple types supported: J, K, T, E, R, S, B, N
- Temperature range: -20°C to +60°C (-4°F to +140°F)
- Resolution: 0.01°C (0.018°F)
- Memory capacity: 524,032 readings per channel for 4 channels, 262,016 for 8, 174,677 for 12, and 131,008 for 16
- Power: 9V lithium battery, approximately 18 months life or external power supply
- Interface: USB-A to Micro USB cable, compatible with Windows XP, 7, 8, 10
- Housing: Black anodized aluminum enclosure
- Dimensions: 2.70 in x 7.25 in x 1.22 in for 4 channels, up to 2.14 in height for 16 channels
- Weight: 13 to 28 oz depending on model
- Calibration: NIST traceable, automatic timestamp
- Additional features: Cold junction compensation, open channel detection, programmable channel enable/disable
- Approvals: CE, RoHS
Buy the Omega OM-CP-TCTempX – Reliable Thermocouple Data Logger for Industrial Applications
Purchase the Omega OM-CP-TCTempX thermocouple data logger online to ensure accurate, real-time temperature monitoring across multiple points. Featuring up to 4Hz sampling rate and high memory capacity, it supports various thermocouple types for versatile applications. Easy to set up with simple software, it includes cold junction compensation for increased precision. Powered by a long-lasting, user-replaceable 9V lithium battery or external power, housed in durable aluminum, ideal for remote and industrial environments. Order now for reliable data collection and quick analysis.
Get Omega OM-CP-TCTempX today—designed for accurate temperature logging with high memory capacity and user-friendly features.
