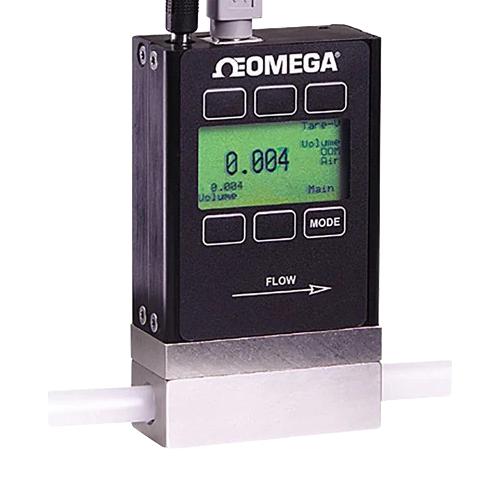

OMEGA FMA1618A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meter by Omega utilizes differential pressure principles within a laminar flow element to measure gas flow rates accurately. It employs a laminar flow device to ensure streamlined gas flow, which allows the use of the Poiseuille equation to relate pressure drop to volumetric flow. The device integrates absolute temperature and pressure sensors to correct the volumetric flow to standard conditions. It features a maximum flow rate of 200 SCCM, with an accuracy of ±(0.8% of reading + 0.2% of full scale). The flow meter includes RS232 communication, a 1/8 FNPT connection, and a display. It offers 130+ gas calibrations for various gases, requires no warm-up time or straight pipe runs, and provides a 200:1 turndown ratio. The package includes the mass flow meter, a 24V DC power supply, a 1.8-meter cable, an 8-pin mini DIN connector, an operator’s manual, and an NIST calibration certificate.
OMEGA FMA1618A Gas Flow Meter Specifications:
- Maximum flow rate: 200 SCCM
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical (field adjustable)
- Output: 0 to 5 V standard
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Supply Voltage: 7 to 30 Vdc (15 to 30 V for 4-20 mA output)
- Supply Current: 35 mA typical
- Wetted parts: 302 and 303 stainless steel, FKM, silicone RTV, glass reinforced PPS, epoxy, aluminum, gold, brass, 430 FR stainless, silicon, glass.
- Connections: 10-32 UNF port, optional FNPT
- Calibration: Air @ 5 psig for 0-1 LPM, 15 psig for 2-10 LPM, 30 psig for 20-100 LPM, 50 psig for 200 LPM+
- Includes: flow meter, power supply, cable, manual, NIST certificate
Buy the Omega FMA-1600A Series Gas Flow Meter: Accurate Differential Pressure Measurement
Purchase the Omega FMA-1600A gas flow meter online today and experience highly accurate measurement of both mass and volumetric gas flows. This advanced device features differential pressure technology, integrated temperature and pressure sensors, and calibration for over 130 gases, making it ideal for diverse industrial applications. With RS232 communication, no need for straight pipe runs, and a maximum flow of 200 SCCM, this flow meter provides reliable data, fast response time, and robust durability. Enhance your process control and ensure precise gas monitoring now.
Get Omega FMA-1600A today—built for precision and long-lasting durability in gas flow measurement.
