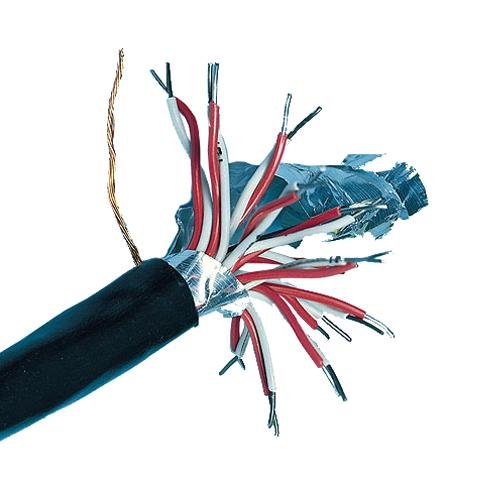

OMEGA 4KX20PP multipair extension cable
This multipair extension cable features twisted pairs with individually wrapped polyvinyl jackets, an electro-static shield, and a polyvinyl outer jacket, making it suitable for signal and communication applications up to 105°C. It includes color-coded pairs for easy identification, a stranded tinned-copper drain wire for shielding, and an extra stranded copper wire for grounding. Available in various configurations, these cables are customizable for specific insulation needs, with minimum lengths of 7.5 meters, ideal for industrial and automation environments demanding reliable performance and precise wiring.
OMEGA 4KX20PP multipair extension cable Specifications:
- Conductor Material: Stranded tinned copper
- Outer Jacket Thickness: Approximately 1.1 mm (0.045 inches)
- Insulation Cover: Polyvinyl with a nominal thickness of 0.38 mm (0.015 inches)
- Shielding: Aluminum-backed polyester film with polyester tape
- Temperature Rating: Up to 105°C (221°F)
- Color Coding: Yellow for positive, Red for negative, additional color codes for different models
- Bending Radius: 6 to 14 times overall diameter depending on cable size
- Minimum Bending Radius for 4 pair cable: 6 times overall diameter
- Minimum Bending Radius for 8+ pair cables: 10 to 14 times overall diameter
- Order Minimum Length: 7.5 meters (25 feet), customizable
- Flexibility: Suitable for industrial wiring, automation, and signal transmission
- Shielding Material: Aluminum-backed polyester film, providing electro-static shielding for interference reduction
- Core Arrangement: Individually twisted pairs with color coding for easy identification
- Application: Communication, control circuits, data transfer, industrial automation
Buy the Buy Multipair Extension Cable Part Number 4KX20PP Online
Enhance your industrial communication and automation setups by purchasing this high-quality multipair extension cable online. Featuring twisted pairs, shielding, color coding, and resistance up to 105°C, it ensures reliable and interference-free signal transmission. Easy to install with standard lengths starting at 7.5 meters, these cables are customizable for specific insulation needs. Perfect for control circuits, data transfer, and automation systems, this multipair extension cable offers durability and flexibility for demanding environments. Order now for quick delivery and seamless integration into your project.
Buy Multipair Extension Cable 4KX20PP now and experience unmatched reliability and performance in industrial signal transmission.
