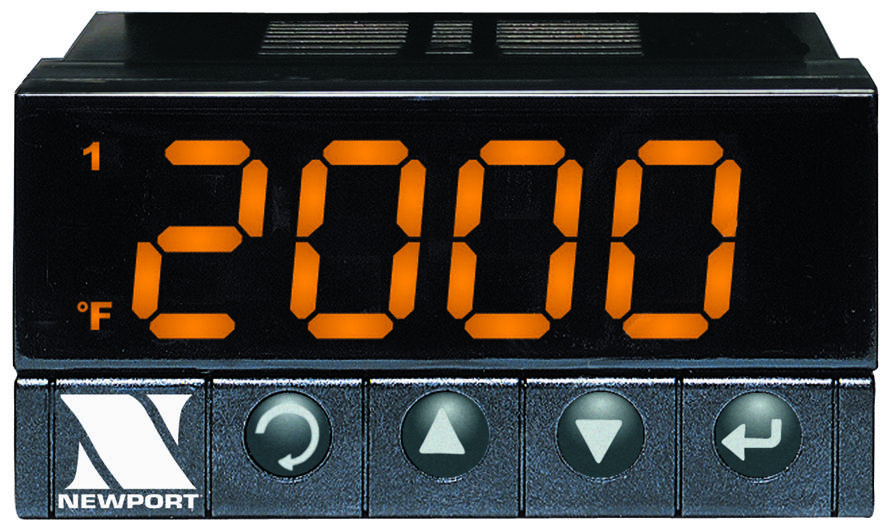

OMEGA DPI8DC Digital Process Meter
The DPI8DC is a compact, DIN-sized digital panel meter designed for temperature and process measurement. It features high accuracy of 0.5°C and 0.03% reading, with dual slope A/D conversion and programmable digital filters. Equipped with a bright 4-digit LED display capable of changing color for setpoints, it supports thermocouples, RTDs, analog voltage, and current inputs. Its versatile communication options include Ethernet, RS232, RS485, and optional embedded internet, making it suitable for precise temperature, strain, and process monitoring in industrial environments. Power options include 90-240 Vac and 12-36 Vdc, with high safety and environmental ratings.
OMEGA DPI8DC Digital Process Meter Specifications:
- Display: 4-digit 9-segment LED, color-changing (green, amber, red)
- Accuracy: ±0.5°C temperature, 0.03% reading
- Input Types: Thermocouple (J, K, T, E, R, S, B, C, N, L), RTD (100/500/1000Ω, 2, 3, or 4-wire), Voltage (0-100 mV, 0-1 V, 0-10 V), Current (0-20 mA)
- Temperature Stability: RTD 0.04°C/°C, Thermocouple 0.05°C/°C at 25°C
- A/D Conversion: Dual slope; sampling rate: 3 samples/sec
- Power Supply: 90-240 Vac ±10%, 12-36 Vdc options
- Communication: Ethernet (TCP/IP), RS232, RS485, optional embedded internet (C24, EIT options)
- Protection Rating: NEMA 4X/IP65 front bezel (i/8, i/16, i/32 series)
- Dimensions: i/8 Series: 48H x 96W x 127D mm; i/16 Series: 48H x 48W x 127D mm; i/32 Series: 25.4H x 48W x 127D mm
- Panel Cutout: i/8: 45H x 92W mm; i/16: 45 mm square; i/32: 22.5H x 45W mm
- Environmental: 0-55°C, 90% RH non-condensing
- Approvals: UL, C-UL, CE (temperature units only), FM (temperature units only)
Buy the Buy Brand Temperature and Process Meter Part Number DPI8DC Online
Purchase the Brand DPI8DC digital process and temperature meter online today for reliable, high-precision measurement in industrial settings. Featuring versatile thermocouple, RTD, voltage, and current inputs, it offers programmable color-changing display for enhanced visibility. With multiple communication options including Ethernet, RS232, RS485, and optional embedded internet, it suits a wide range of automation and control applications. Its compact DIN size, high accuracy of 0.5°C, 0.03% reading, and approvals ensure dependable performance in demanding environments. Buy online now for quick installation and consistent results.
Order your Brand DPI8DC temperature and process meter today and ensure precise monitoring with versatile inputs, color display, and robust communication features.
Frequently Asked Questions
Where can I buy OMEGA DPI8DC?
You can click on the BUY or RFQ button to purchase DPI8DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPI8DC?
You can download the DPI8DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPI8DC?
OMEGA
