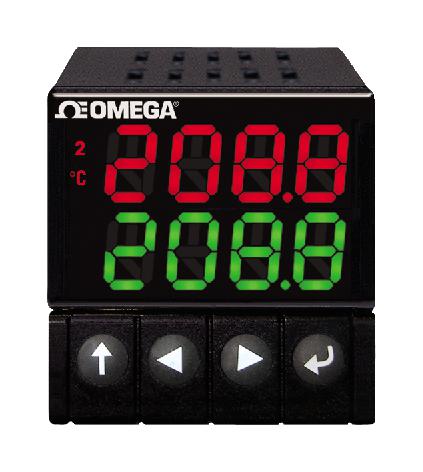

OMEGA CN16DPT145 Temperature Controller
The CN16DPT145 is a versatile temperature and process controller featuring a 4-digit, 9-segment LED display with a wide viewing angle. It offers firmware configurable inputs including thermocouples, RTDs, thermistors, voltage, current, and strain, with high accuracy and fast sampling rates. The controller supports multiple control modes such as PID with auto-tune and fuzzy logic adaptive tuning, up to 99 programs with ramp and soak segments, and several output choices like relays, DC pulse, and analog signals. Its Power supply can be 12-36 Vdc, making it suitable for industrial and laboratory applications.
OMEGA CN16DPT145 Temperature Controller Specifications:
- Display: 4-digit, 9-segment LED with wide viewing angle
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Thermocouple Types: K, J, T, E, R, S, B, C, N
- RTD Resistance: 100, 500, 1000 Ω, 2-, 3-, or 4-wire configuration
- Thermistor: 2252 Q, 5K Q, 10K Q
- Input Impedances: Process/Strain 10 MΩ, Voltage 10 kΩ, Current 5Ω
- Sampling Rate: Up to 20 samples/sec with 24-bit ADC
- Control: PID auto-tune, fuzzy adaptive tuning, ON/OFF, heat/cool modes
- Outputs: 2 to 6 programmable, relay, DC pulse, analog voltage/current, isolated or non-isolated
- Communication: USB standard, optional Ethernet and RS232/RS485 with MODBUS
- Power Supply: 12-36 Vdc, 3 W (low voltage); 90-240 Vac, 50-400 Hz (line voltage)
Buy the Omega Series CN16DPT145 Temperature Controller: CN16DPT145
Discover the powerful and versatile Omega Series CN16DPT145 temperature and process controller, designed for precise measurement and control. With a bright, multi-color LED display, multiple input options including thermocouples, RTDs, and thermistors, and advanced PID tuning features, this controller ensures optimal process management. Programmable ramp and soak profiles, flexible output configurations, and USB connectivity make setup effortless. Ideal for industrial, laboratory, or automation applications, this device provides reliable performance, easy installation, and comprehensive communication interfaces to enhance your operation efficiency.
Order your Omega Series CN16DPT145 temperature and process controller today and give your projects the dependable industrial control they deserve.
Frequently Asked Questions
Where can I buy OMEGA CN16DPT145?
You can click on the BUY or RFQ button to purchase CN16DPT145 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN16DPT145?
You can download the CN16DPT145 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN16DPT145?
OMEGA
