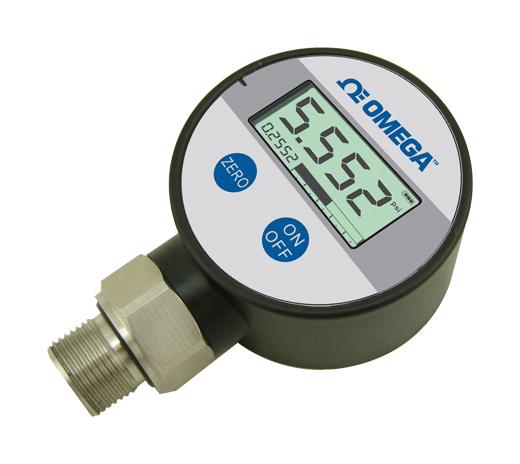

OMEGA DPG10830KG Digital Pressure Gauge
The DPG 108 is a versatile battery-powered digital pressure gauge suitable for on-site measurements in industries like hydropower, water, petroleum, chemical, and hydraulic. It features a high-precision piezo-resistive sensor, an LCD display with backlight, and can record maximum pressure values automatically. Its measuring range extends from -0.1 to 100 MPa, with accuracy rates of 0.25% FS for gauge pressure and 0.5% FS for other ranges. The device comes with multiple units, auto power-off, and IP65/IP68 ratings for durability in harsh environments, ensuring reliable performance during demanding applications.
OMEGA DPG10830KG Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Engineering Units: psi, bar, kPa, MPa, kg / cm²
- Overload Pressure: 150% to 200%
- Pressure Type: G/AID
- Stability: <0.1% FS per year
- Power Supply: unspecified
- Display: 4 Digit LCD
- Accuracy: 20.25% FS gauge, 40.5% FS all others
- IP Rating: IP65 / IP68 with silicone case
- Sampling Rate: 4 times/sec
- Operating Temp: -20°C to 70°C
- Relative Humidity: up to 90%
- Thread Size: V4 NPT
- Thread Material: stainless steel
- Dimensions: unspecified
Buy the Omega Series DPG Pressure Gauge: DPG10830KG
Order the Omega DPG10830KG digital pressure gauge online today to enhance your industrial measurement accuracy. This reliable, battery-powered device offers high-resolution readings, multiple units, and robust IP65/IP68 ratings. Perfect for demanding environments, it automatically records maximum pressures and features adjustable auto-shutoff for extended use. Its compact design and intuitive interface make installation and operation straightforward, ensuring precise monitoring in industries like water, petroleum, and chemical processing. Get yours now for dependable pressure measurements and simplified maintenance.
Buy Omega DPG10830KG now and experience unmatched reliability and performance in industrial pressure measurements with precise digital display and durability.
