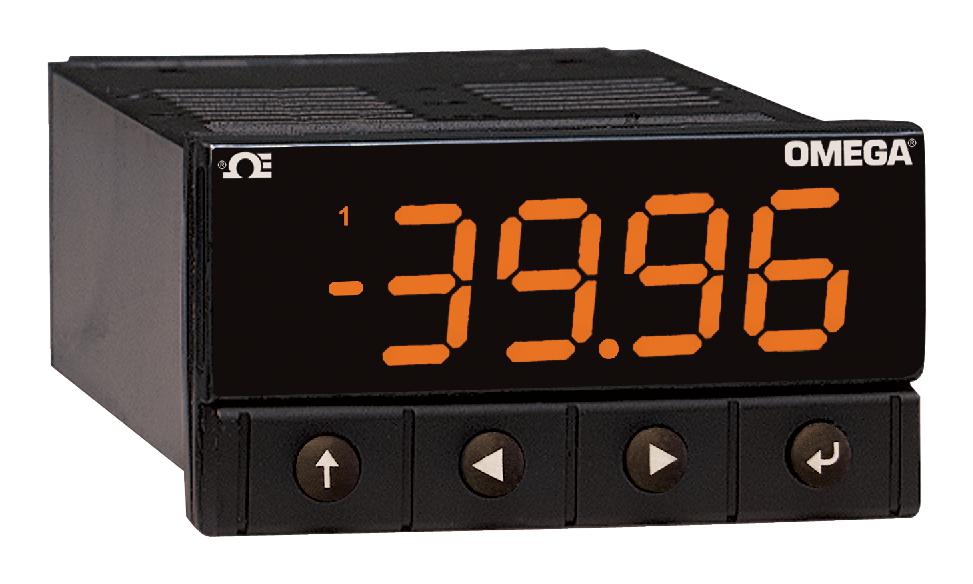

OMEGA CN32PT220 Process Controller
The CN32PT220 is a versatile process controller designed for precise temperature, process, and strain control in industrial applications. Featuring programmable control and alarm outputs, a bright three-color LED display, and compatibility with thermocouples, RTDs, thermistors, voltage, current, and strain inputs, it offers high accuracy and user-friendly configuration. Embedded USB communication and optional serial and Ethernet interfaces facilitate easy setup, firmware updates, and data transfer. Its robust design includes NEMA 4X front bezel, UL, cUL, and CE certifications, making it suitable for a wide range of industrial environments and demanding control tasks.
OMEGA CN32PT220 Process Controller Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Thermocouple Types: K, J, T, E, R, S, B, C, N
- RTD: 100, 500, 1000 Q, 2- or 3-wire, 0.00385, 0.00392, or 0.003916 curve
- Thermistor: 2252 Q, 5K Q, 10K Q
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vde, Scalable
- Current Input: 4 to 20 mA, 0 to 24 mA, Scalable
- Process/Strain Input Impedance: 10 MΩ for voltage, 5Ω for current
- Temperature Stability: RTD 0.04°C/°C, Thermocouple 0.05°C/°C
- Analog Outputs: Voltage 0-10V, Current 0-20mA, 0.1% FS accuracy, 100 ms step response
- Control Modes: ON/OFF, PID, auto-tune, adaptive fuzzy logic PID
- Outputs: 2 to 6 programmable, relay, SSR, DC pulse, analog voltage/current, isolated options
- Communication: USB 2.0 host/client, Ethernet RJ45 (optional), RS232/RS485 (optional), MODBUS protocol, TCP/IP
- Power Supply: 90-240 Vac, low voltage 12-36 Vdc, 3 W (standard), 4 W (low voltage)
- Protection: NEMA 4X (IP65) front bezel, UL, cUL, CE certifications, 5-year warranty
- Dimensions: 48H x 96W x 127mmD for % DIN models, 45 mm height for Ye DIN, 22.5 mm height for % DIN
- Environmental Conditions: 0 to 50°C, 90% RH, non-condensing
- Certifications: UL, cUL, CE
- Additional features include: remote setpoint, high-high/low-low alarms, external latch reset, cascade control, password protection
Buy the Platinum CN32PT220 – Reliable Process Controller for Industrial Applications
Discover the Platinum CN32PT220 process controller, engineered for demanding industrial environments. Featuring high precision inputs, programmable control and alarm outputs, and a bright LED display, it simplifies complex process management. Easily configured via USB, serial, or Ethernet interfaces, this controller supports thermocouples, RTDs, thermistors, voltage, current, and strain inputs. Its robust build, NEMA 4X front bezel, and certifications ensure durability and safety. Perfect for temperature, process, and strain control in manufacturing, research, and automation systems. Order online today for reliable performance.
Buy Platinum CN32PT220 now and experience unmatched reliability and versatile process control with advanced communication options.
