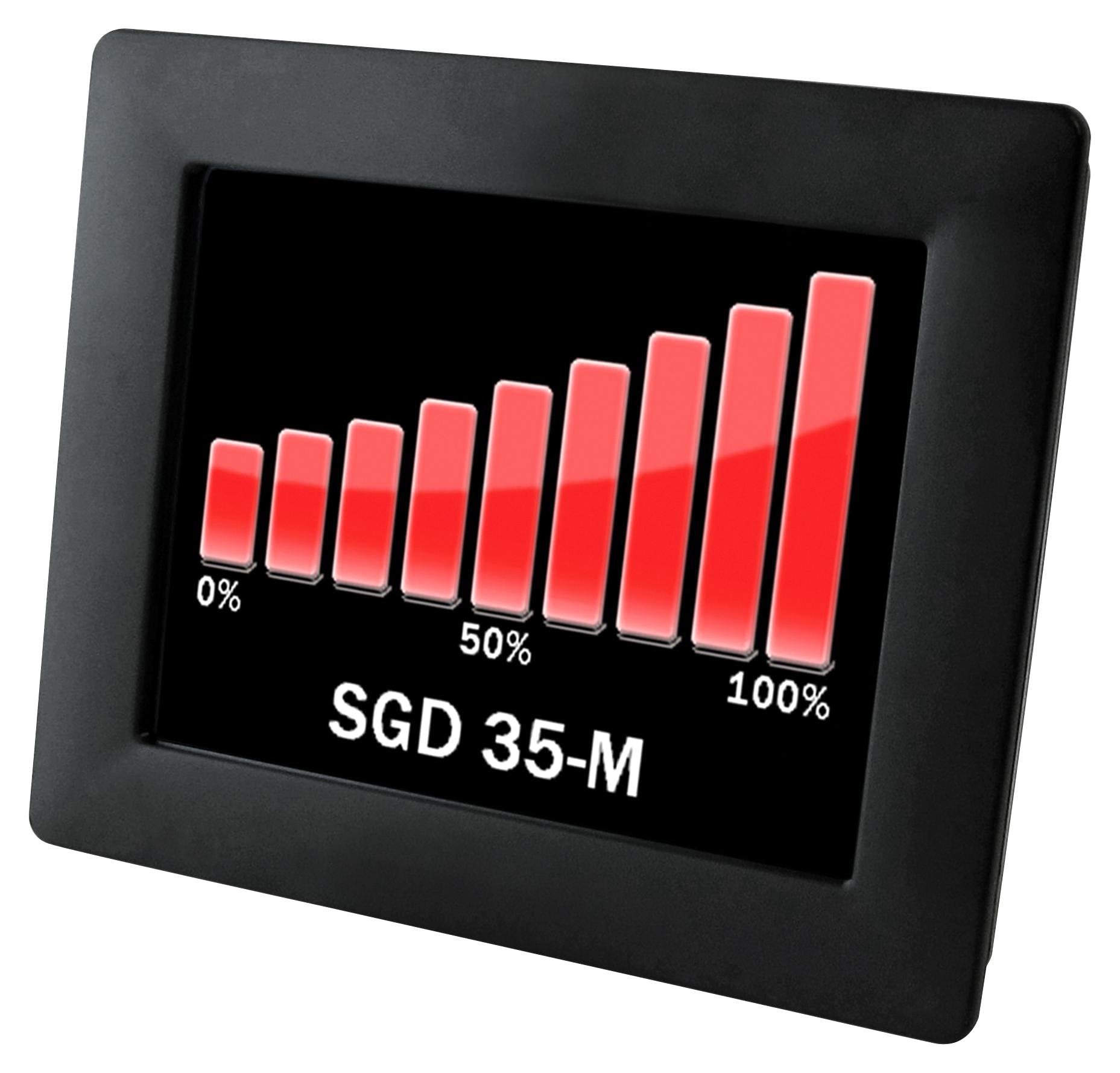

OMEGA OMSGD35M Smart Graphics Display
The OM-SGD Series features customizable smart graphics displays available in 2.4", 2.8", and 3.5" sizes, suitable for industrial monitoring and control applications. These TFT color displays are software configurable with over 40 standard configurations, allowing custom color, text, scaling, and unit adjustments via USB connection to Windows® compatible software. Models include voltage, current, and waterproof variants, with options for thermocouple input via an add-on board for temperature measurement. The series offers accurate, fast sampling, multiple alarm outputs, and robust sealed waterproof versions for demanding environments, ensuring reliable operation from 0 to 40°C.
OMEGA OMSGD35M Smart Graphics Display Specifications:
- Display Sizes: 2.4 inch, 2.8 inch, 3.5 inch TFT color displays
- Resolution: 320 x 240 pixels, 16-bit color
- Input Types: Voltage (2 channels), 4-20 mA (1 channel), thermocouple (optional add-on)
- Voltage Input Ranges: 0 to 20 V, ±0.3 to 49 mV resolution
- Current Input: 4 to 20 mA, 0 to 50 mA max, Loop Voltage Drop: 0.4 to 2.0V
- Power Supply: 4 to 30 Vdc, typical current 35-190 mA, waterproof models 255 g
- Alarm Outputs: Two open-collector, sink up to 10 mA each
- Accuracy: 0.05% typical, Linearity: +1 count max
- Sample Rate: Up to 3 samples/sec
- Operating Temp: 0 to 40°C
- Connection: Screw terminals, NEMA 6 (IP67) waterproof variants
- Panel Cutouts: Ranging from 74 x 46 mm to 92 x 75 mm
Buy the Omega OM-SGD Series – Reliable Smart Graphics Displays for Industrial Applications
Discover the advanced Omega OM-SGD Series, featuring customizable TFT color displays available in multiple sizes and waterproof options. These displays are ideal for industrial automation, process control, and monitoring applications where reliable, clear visuals are essential. With easy software configuration, multiple input options, and precise measurement capabilities, they provide flexibility and accuracy across a wide temperature range. Compatible with Windows®, the OM-SGD Series ensures quick setup and dependable operation, making it the perfect choice for demanding industrial environments. Buy online now for fast delivery and quality assurance.
Get Omega OM-SGD Series today—built for precision and long-lasting durability in industrial environments.
