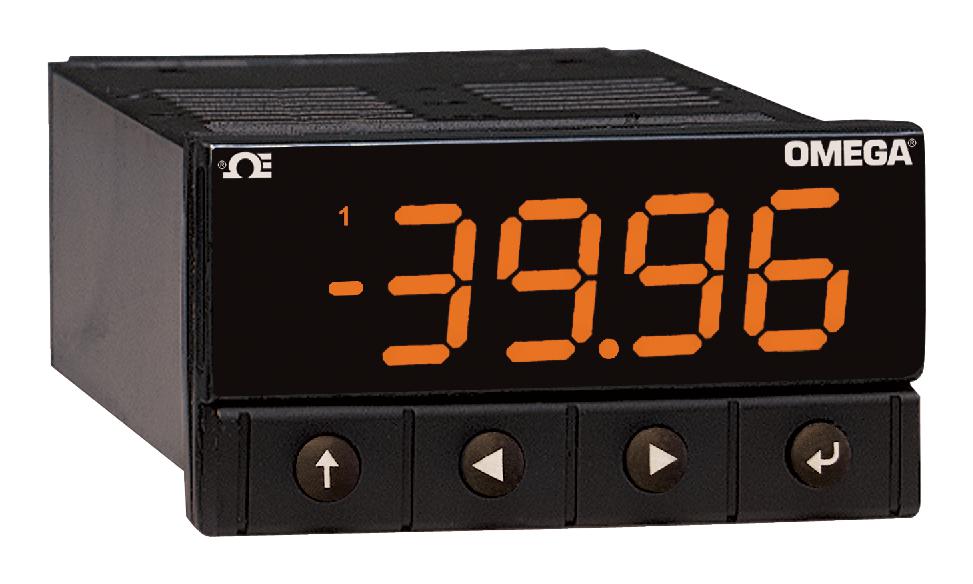

OMEGA CN32PT305 Temperature Process Controller
The PLATINUM Series temperature, process, and strain controllers deliver industry-leading performance with versatile input options including thermocouples, RTDs, thermistors, and strain gauges. They feature a bright, customizable three-color LED display, firmware-driven configuration with no jumpers needed, and advanced control modes like full autotune PID with fuzzy logic. Multiple programmable outputs, remote setpoint, cascade control, and embedded Ethernet enable precise and flexible process management ideal for industrial automation, manufacturing, and scientific research. Certification includes UL, cUL, and CE, with a five-year warranty ensuring reliability and durability.
OMEGA CN32PT305 Temperature Process Controller Specifications:
- Display: 4-digit, 9-segment LED with wide viewing angle, 45 mm (1.772") size
- Input Types: Thermocouple (J, K, T, E, R, S, B, C, N), RTDs (100, 500, 1000 Q), thermistors, process voltage/current, strain
- Input Ranges: Thermocouples from -270°C to 2320°C, RTDs up to 660°C, voltage from -100 to 100 mV, current from 4 to 20 mA
- Outputs: 2 to 6 programmable control/alarm/retransmission outputs including DC pulse, SSR, mechanical relays, analog voltage/current with 0.1% accuracy
- Control Modes: ON/OFF, PID with autotune and fuzzy logic, manual, proportional, derivative, integral options
- Communication: USB (standard), optional Ethernet, RS232/RS485, supporting MODBUS and ASCII protocols
- Power Supply: 90-240 Vac (line voltage) or 12-36 Vdc (low voltage), with global safety certifications
- Specifications: 20 samples/sec ADC, 16 ramps/soak segments, programmable ramp/soak times, built-in excitation for strain gauges
- Standards & Certifications: UL, cUL, CE, NEMA 4X/IP65 front bezel, 5-year warranty
- Additional features include remote setpoint, external reset, configurable alarms, password protection, and web server capabilities.
Buy the Platinum Series Temperature Process Controller: CN32PT305
Order the Platinum CN32PT305 online today to experience industry-leading precision, versatile input options, customizable outputs, and robust communication features. Perfect for demanding industrial, scientific, and manufacturing environments, this high-performance controller offers advanced PID tuning with autotune and fuzzy logic. Its bright, multi-color display ensures easy monitoring, while embedded Ethernet and serial interfaces provide seamless connectivity for integration into complex automation systems. Built to last with UL, cUL, and CE certification, and backed by a five-year warranty, the CN32PT305 guarantees reliable, accurate control for all your process needs.
Get Platinum CN32PT305 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA CN32PT305?
You can click on the BUY or RFQ button to purchase CN32PT305 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN32PT305?
You can download the CN32PT305 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN32PT305?
OMEGA
