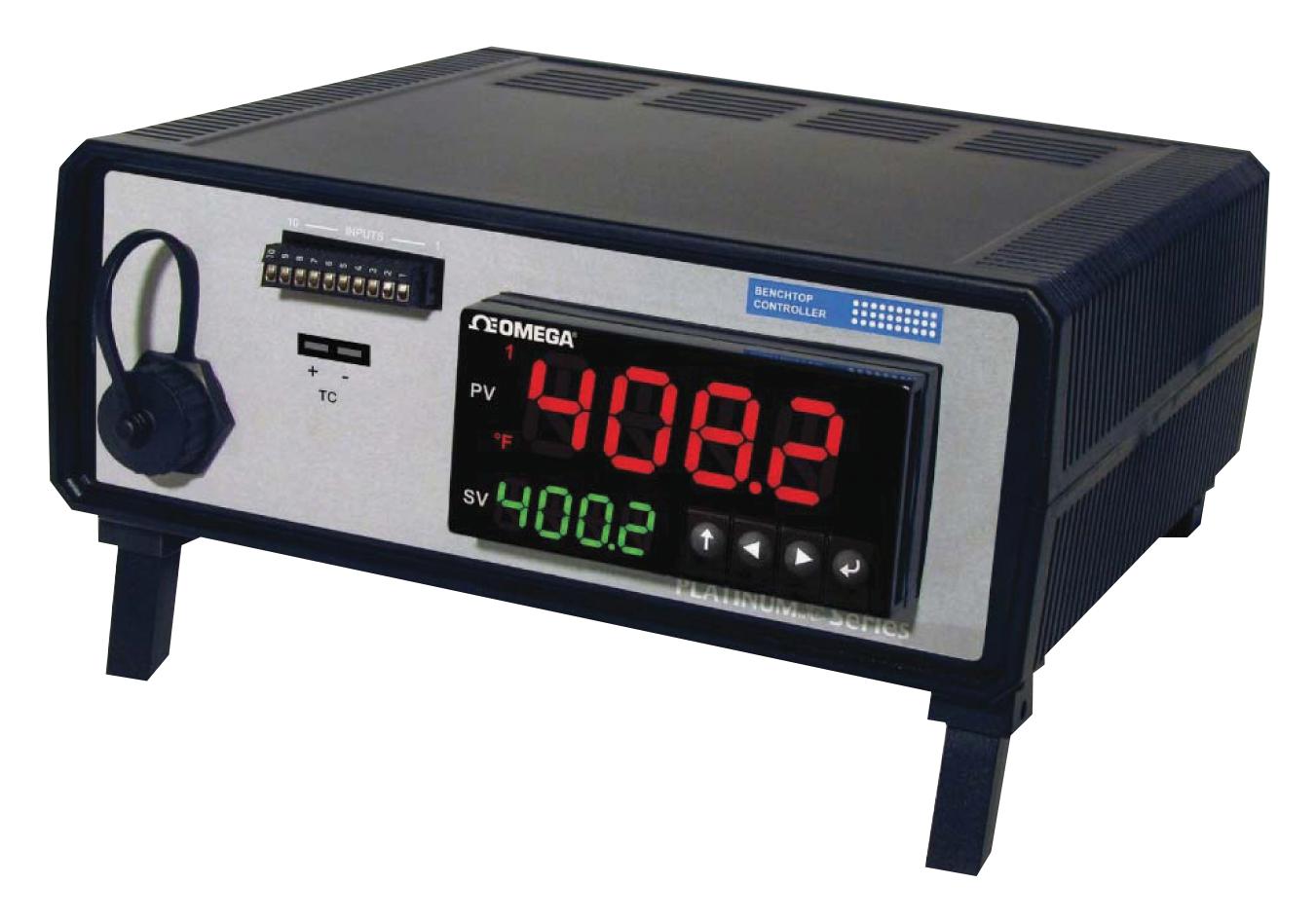

OMEGA CS8DPT Benchtop Digital Controller
The OMEGA CS8DPT is a versatile benchtop digital controller designed for precise temperature and process control with a large color display and universal inputs. It supports thermocouples, RTDs, thermistors, and process voltage or current signals, making it ideal for laboratory and industrial applications. The controller features internal 5A SSR control output, dual LED displays, and programmable color indicators for alarms and setpoints. Optional Ethernet and serial communications enable seamless integration into automation systems, providing high accuracy and easy configuration for reliable process management.
OMEGA CS8DPT Benchtop Digital Controller Specifications:
- Power Supply: 90 to 240 Vac @ 50/60 Hz
- Dimensions: 236 W x 230 D x 108 mm H (9.3 x 9.1 x 4.3 inches)
- Weight: 1.13 kg (2.5 lb)
- Display: 4-digit, 9-segment LED, with programmable color indicators
- Input Types: Thermocouple, RTD, thermistor, process voltage/current, strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L
- RTD: 2-, 3-, or 4-wire, 0.00385 or 0.00392 curve
- Process Voltage: +50 mV, +100 mV, +1 V, +10 V (0.03% FS)
- Process Current: 0 to 24 mA (0.03% FS)
- Control Output: 5A SSR, 3A relay, programmable excitation voltage
- Communications: Ethernet (IEEE 802.3 10/100), RS232/RS485, USB (optional)
- A/D Conversion: Dual-slope, 20 samples/sec
- Resolution: 1°, 0.1°; 10 pV process
- Accuracy & Stability: RTD 0.04°C/°C; Thermocouple 25°C, cold-junction 0.05°C/°C; Process 50 ppm/°C
- Sensors Supported: Thermocouples, RTDs, thermistors, voltage, current, strain
- Ambient Operating: 0°C to 50°C, indoor use
Buy the Buy Omega CS8DPT Part Number CS8DPT Online
Purchase the Omega CS8DPT benchtop digital controller online and enhance your process monitoring with high accuracy, versatile universal inputs, dual LED displays, and optional Ethernet connectivity. Its user-friendly interface, internal SSR control, and programmable color indicators enable precise temperature and process management in laboratory or industrial settings. Designed for easy integration, it supports thermocouples, RTDs, thermistors, voltage, current, and strain signals. Reliable and robust, this controller ensures optimal performance with simple configuration and durable construction, making it an essential tool for advanced process automation.
Get Omega CS8DPT today—built for precision and long-lasting durability in temperature and process control applications.
