OMEGA CT485CMF Wireless Chart Recorder
The CT485CMF is a portable, wireless circular chart recorder designed for reliable monitoring over extended periods. Featuring a large 200 mm (8") chart display, it offers dual channel readouts, min/max/avg values, and customizable chart scales. Suitable for industrial environments, laboratories, and clean rooms, it supports temperature, humidity, process voltage, current, thermocouple, and pH measurements. Equipped with alarms, dual relays, and RS232 communication, this recorder provides comprehensive data logging, easy operation, and flexible mounting options, ensuring precise environmental monitoring in various applications.
OMEGA CT485CMF Wireless Chart Recorder Specifications:
- Display: Custom dual LCD with backlight

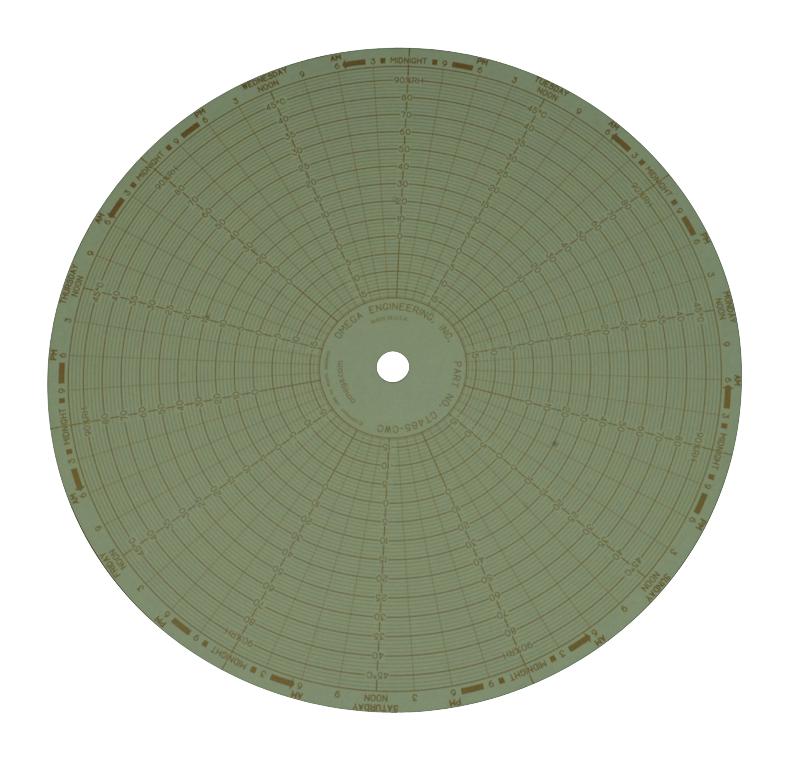

- Chart Diameter: 200 mm (8") circular, double-sided
- Chart Duration: 1, 7, or 32 days
- Measurement Types: Temperature, humidity, process voltage/current, thermocouple, pH
- Sensor Compatibility: Wired and wireless probes, RTD, thermocouple, pH electrode
- Alarm Outputs: Dual relays with contact closures, dual voltage outputs
- Communication: RS232 serial interface, PC software available
- Data Storage: 256K EEPROM
- Power: 4 D batteries or universal AC adapter
- Enclosure: Rugged ABS plastic, wall or benchtop mount
- Operating Environment: -18°C to 49°C, 2-98% RH
- Dimensions: 33.5 x 27.1 x 6.7 cm (13.2 x 10.7 x 2.6 inches)
- Weight: Approx. 3.2 kg (7 lbs)
Buy the OMEGA CT485CMF – Reliable Circular Chart Recorder for Industrial Applications
Purchase the Omega CT485CMF wireless circular chart recorder online today to ensure accurate and dependable environmental data collection. Its easy-to-read dual LCD readout, customizable chart durations, and dual alarms make it perfect for industrial, laboratory, and clean room settings. With flexible mounting options, RS232 communication, and comprehensive data storage, this recorder provides precise monitoring of temperature, humidity, and process signals over extended periods. Get reliable performance and comprehensive data management—order now for efficient environmental control.
Order your Omega CT485CMF portable circular chart recorder today and enhance your environmental monitoring with reliable, extended-duration data logging.
Frequently Asked Questions
Where can I buy OMEGA CT485CMF?
You can click on the BUY or RFQ button to purchase CT485CMF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CT485CMF?
You can download the CT485CMF datasheet or visit the OMEGA website for support.
Who is the manufacturer of CT485CMF?
OMEGA
