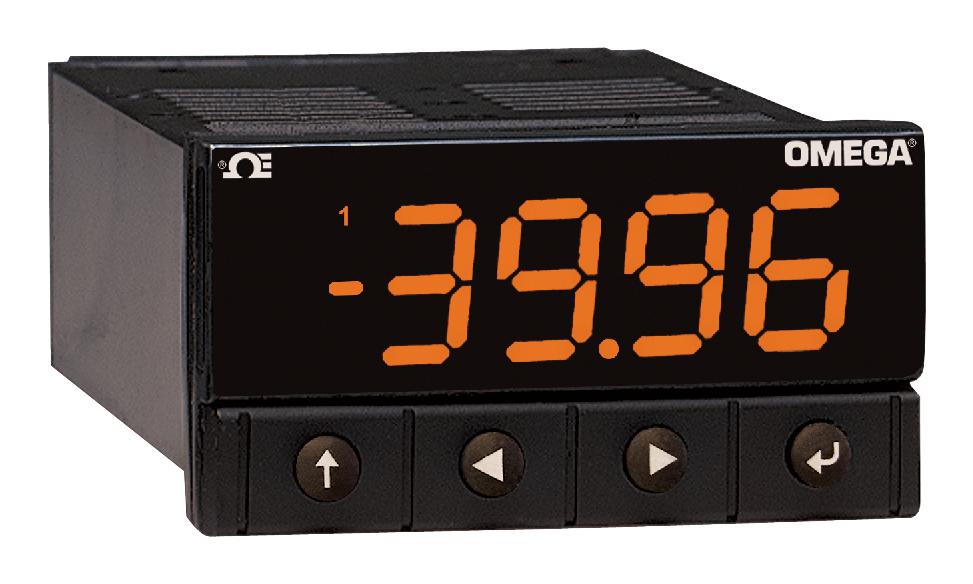

OMEGA CN32PT305DC Process Controller
The CN32PT305DC is a highly versatile temperature and process controller featuring a bright 4-digit, 9-segment LED display, firmware configurability, and universal inputs. It offers multiple output options including SPDT relays, DC pulses, and analog signals, with embedded Ethernet and serial communications for seamless integration. Designed for demanding industrial applications, it provides high accuracy, auto-tune PID control, and extensive programmability with up to 99 programs and ramp/soak segments. Configurable for thermocouples, RTDs, thermistors, and process voltage/current, ensuring flexible deployment across diverse environments.
OMEGA CN32PT305DC Process Controller Specifications:
- Display: 4-digit, 9-segment LED
- Input Types: Thermocouple, RTD, thermistor, process voltage/current, strain
- Thermocouple Types: K, J, T, E, R, S, B, C, N
- RTD Configurations: 100/500/1000 Ω platinum, 2/3/4-wire
- Thermistor: 2252 Q, 5K Q, 10K Q
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vde, Scalable
- Current Input: 4 to 20 mA, 0 to 24 mA, Scalable
- Outputs: Up to 6 programmable outputs including relays, DC pulse, and analog voltage/current
- Control Modes: On/Off, PID with auto-tune, fuzzy logic adaptive tuning
- Ramp/Soak: Up to 99 programs with 16 segments each, chainable
- Communications: USB, optional Ethernet, RS232/RS485 with MODBUS
- Power Supply: 90-240 Vac or 12-36 Vdc low voltage option
- Environmental Conditions: 0 to 50°C, 90% RH, non-condensing
- Certifications: UL, cUL, CE
- Dimensions: 45 mm height, 48 mm width, 127 mm depth, panel cutout 45 mm height, 92 mm width
- Protection: NEMA 4X (IP65) front bezel, NEMA 1 (IP20) standard
- Accuracy: ±0.03% of full scale for process inputs, ±0.4°C for thermocouples
Buy the Omega CN32PT – Reliable Process Controller for Industrial Applications
Enhance your industrial automation with the Omega CN32PT process controller, featuring a bright LED display, extensive programmability, universal inputs, and multiple output options including relays, DC pulse, and analog signals. Supports Ethernet and serial communication for seamless integration. Equipped with auto-tune PID and fuzzy logic adaptive control, it ensures precise temperature and process regulation in demanding environments. Its flexible configuration, certifications, and robust design make it ideal for factory automation, laboratory research, and manufacturing processes requiring reliable and accurate control.
Order your Omega Series CN32PT process controller today and enhance your industrial temperature and process control with dependable, easy-to-use technology.
Frequently Asked Questions
Where can I buy OMEGA CN32PT305DC?
You can click on the BUY or RFQ button to purchase CN32PT305DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN32PT305DC?
You can download the CN32PT305DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN32PT305DC?
OMEGA
