OMEGA ISDTC Dual Thermocouple Monitor

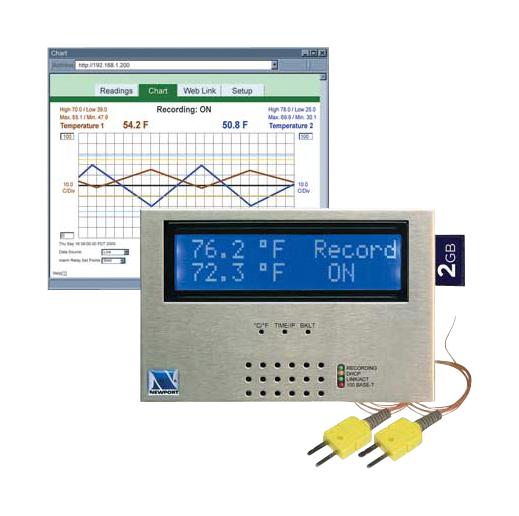

The Omega iSD-TC is a dual thermocouple temperature monitoring device designed for web-based applications in critical environments like server rooms, laboratories, and clean rooms. It enables users to view, log, and analyze temperature data over Ethernet or the internet via any standard web browser, with no additional software required. The system features email alarms, contact closure inputs for local alarms, and operates on backup power for two days. Data is stored on a removable 2GB SD card, capable of recording up to seven years. Easily mounted in a stainless steel case, it supports multiple thermocouple types (J, K, T, E, R, S, B, C, N, L), following ITS 90 standards, and provides real-time charts, configurable alarm thresholds, and remote access, making it ideal for diverse industrial and scientific applications.
OMEGA ISDTC Dual Thermocouple Monitor Specifications:
- Input Type: Thermocouple (J, K, T, E, R, S, B, C, N, L)
- Temperature Range: -270°C to 1820°C (-454°F to 3308°F)
- Temperature Accuracy: ±0.4°C (0.7°F) within specified ranges
- Resolution: 0.1°C (0.2°F)
- Thermocouple Lead Resistance: 40 to 1768°C (104 to 3214°F)
- Interfaces: Ethernet 10/100BASE-T, TCP/IP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, Telnet
- LCD Display: 32 digits, 4.8 x 9.7 mm (0.19 x 0.38 inches)
- SD Card Storage: 2GB, up to 7 years at 10s interval recording
- Relay Outputs: Two relays, 1.5 A @ 30 VDC
- Alarm Inputs: Two contact inputs, TTL 0.5 mA with 10K pull-up
- Sample Rate: 16 samples/sec
- Embedded WEB Server: Serves real-time data and charts
- Power Input: 9 to 12 VDC, AC adaptor 100-240 Vac
- Dimensions: Stainless steel case, wall mount bracket included
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Weight: 462 g (1.02 lbs) including battery
- Certifications: Qualified for industrial use, TCP/IP standards support
Buy the Omega ISD-TC – Reliable Dual Thermocouple Monitoring for Industrial Applications
Purchase the Omega iSD-TC today to ensure precise and reliable temperature monitoring in your critical facilities. Equipped with dual thermocouple inputs, email and local alarms, SD card data storage, and web-based access, this device simplifies remote temperature management. Its easy installation, support for multiple thermocouple types, and robust construction make it ideal for laboratories, server rooms, clean rooms, or industrial storage. With backup battery operation and seamless network integration, secure your environmental conditions with confidence. Order now to enhance your monitoring capabilities and maintain optimal conditions effortlessly.
Buy Omega ISD-TC now and experience unmatched reliability, real-time web-based temperature monitoring, and long-term data logging in critical environments.
Frequently Asked Questions
Where can I buy OMEGA ISDTC?
You can click on the BUY or RFQ button to purchase ISDTC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part ISDTC?
You can download the ISDTC datasheet or visit the OMEGA website for support.
Who is the manufacturer of ISDTC?
OMEGA
