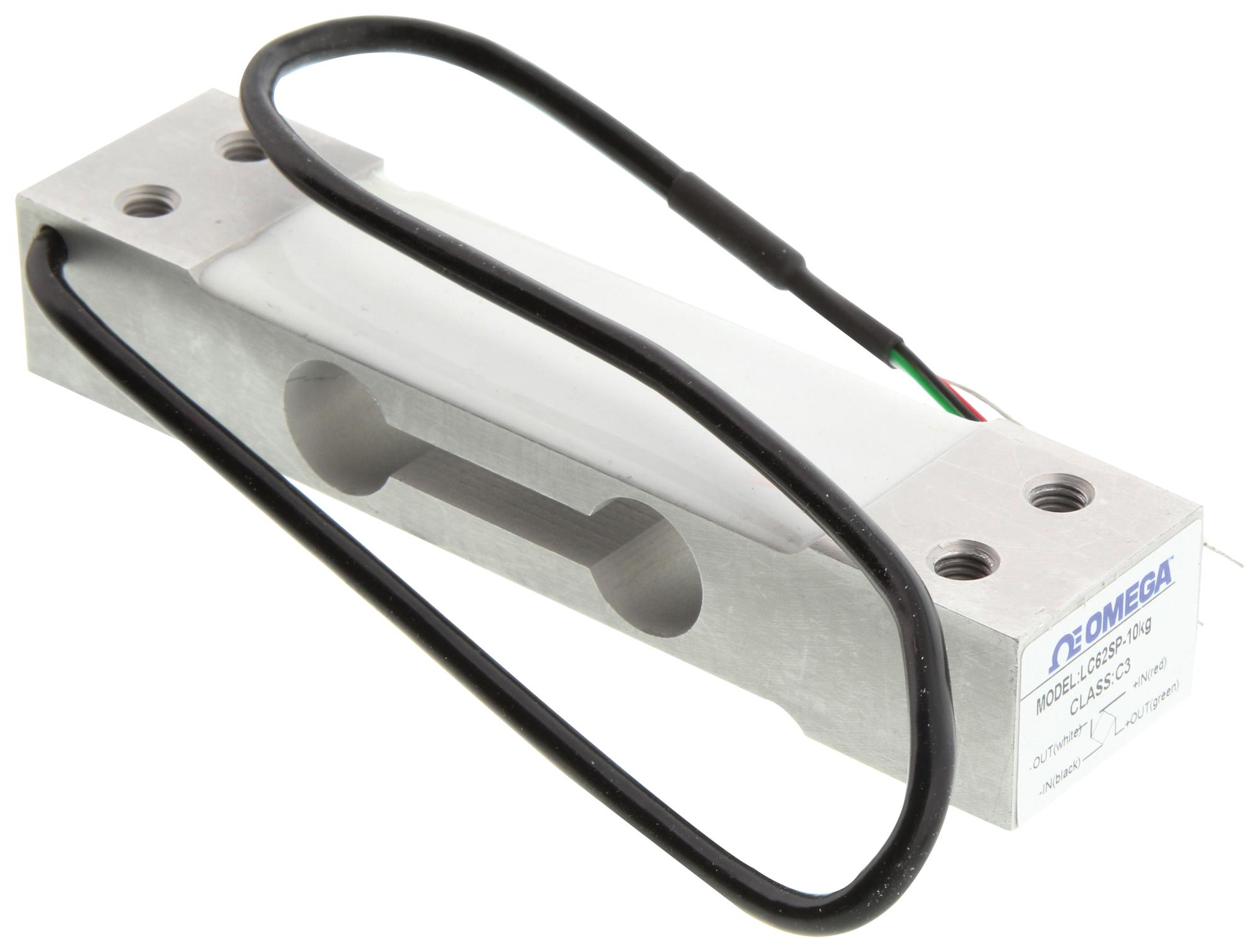

OMEGA LC62SP10KG Aluminum Single Point Load Cell
The LC62SP10KG aluminum single point load cell offers 0-10 kg capacity, ideal for electronic scales and weighing applications. Made from corrosion-resistant aluminum, it features an IP65 environmental protection rating, moisture-proof sealant, and a highly accurate, low-cost design. Its single point structure resists eccentric loading, enabling direct mounting on weighing platforms. Suitable for OEM use, it operates efficiently at 5-12 VDC excitation voltage, with a sensitivity of 2.0 ±0.2 mV/V, providing reliable performance in various environmental conditions from -35°C to 65°C. Dimensions are detailed in the technical drawings.
OMEGA LC62SP10KG Aluminum Single Point Load Cell Specifications:
- Material: Aluminum
- Capacity: 0-10 kg (22 lb)
- Output Sensitivity: 2.0 ±0.2 mV/V
- Accuracy Class: C3
- Rated Excitation Voltage: 5-12 VDC
- Maximum Excitation Voltage: 18 VDC
- Insulation Resistance: > 5000 MΩ (50 VDC)
- Protections: IP65 ingress protection
- Operating Temperature: -35°C to 65°C
- Storage Temperature: -40°C to 70°C
- Dimensions: Refer to technical drawings, typical mounting M6/6 Nm torque
Buy the Buy Omega Load Cell Part Number LC62SP10KG Online
Enhance your weighing systems with the high-accuracy aluminum single point load cell. The LC62SP10KG provides precise measurement from 0-10 kg, featuring moisture-proof IP65 protection and easy mounting for OEM applications. Made from durable aluminum, it delivers stability and resistance to environmental conditions, operating efficiently between -35°C and 65°C. Its sensitivity of 2.0 ±0.2 mV/V ensures consistent results, making it ideal for electronic scales, bench scales, and industrial weighing devices. Conveniently purchase online for reliable performance.
Order your Omega SeriesLC62SP10KG today and experience reliable, high-accuracy weighing performance for your industrial or laboratory scale projects.
Frequently Asked Questions
Where can I buy OMEGA LC62SP10KG?
You can click on the BUY or RFQ button to purchase LC62SP10KG from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC62SP10KG?
You can download the LC62SP10KG datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC62SP10KG?
OMEGA
