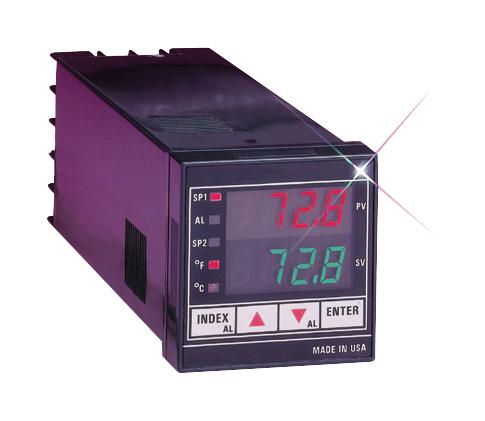

OMEGA CN76130 Process Controller
The CN76000 series are compact DIN rail-mounted controllers designed for precise process control in industrial automation. Featuring dual 4-digit LED displays, they support autotune PID, manual, and on/off control modes, accommodating thermocouple, RTD, voltage, or current inputs. Equipped with waterproof front panels, self-diagnosis, non-volatile memory, and multiple control outputs, these controllers are suitable for heating, cooling, and other process applications. Optional RS485 communication, process recorder output, alarms, and versatile input ranges make them ideal for demanding industrial environments requiring reliable, scalable control solutions.
OMEGA CN76130 Process Controller Specifications:
- Inputs: Thermocouple, RTD, voltage or current; ranges vary
- Resolution: Fully scalable; voltage/current inputs have up to 2 decimal places
- Accuracy: ±0.25% span +1 digit
- Input Impedance: Thermocouple 3 MΩ, RTD 200 Ω, voltage 5 kΩ
- Sensor Break Protection: De-energizes outputs on sensor failure
- Loop Break Protection: Error message for shorted/open sensors with adjustable break time
- Setpoint Range: User selectable
- Display: Dual 4-digit 7-segment LED, 7.6 mm high, process variable in red, setpoint in green
- Control Action: Reverse or direct, single or dual setpoint
- Control Modes: Time-proportioning, proportional, manual PID, P, PI, PD
- Proportional Band: 6 to 5000°F or °C, 6 to 9990 for voltage/current inputs
- Integral Time: 0.1 to 99.9 minutes, off
- Derivative Time: 0.01 to 99.99 minutes, off
- Cycle Time: 2 to 80 seconds
- Ramp/Soak: 0 to 100 hours, hold or off end mode
- Power: 100-240 V AC or 132-240 V DC, 5 VA max
- Physical Dimensions: 48 x 48 x 125 mm with 45 mm panel cutout
- Connections: Screw terminals, optional RS485, relay, DC pulse, or voltage/current outputs
- Alarms: 2 configurable alarms with relay output
- Environmental: Operating -10 to 55°C, storage -40 to 80°C, humidity up to 90%
Buy the Omega CN76000 – Reliable Industrial Control for Automation Applications
Purchase the Omega CN76000 process controller today to ensure accurate, reliable control for your heating, cooling, or other industrial processes. Designed with dual displays, autotune PID, multiple input options, and waterproof front panels, this controller offers unmatched flexibility and performance. Equipped with optional RS485 communication, alarm outputs, and ramp/soak features, it is suitable for demanding factory environments. Order online now and enhance your automation system with a scalable, easy-to-program control solution that guarantees consistent, efficient operation.
Buy Omega CN76000 controllers now and experience unmatched reliability, precise control, and versatile communication options for your industrial processes.
Frequently Asked Questions
Where can I buy OMEGA CN76130?
You can click on the BUY or RFQ button to purchase CN76130 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN76130?
You can download the CN76130 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN76130?
OMEGA
