OMEGA CN76030 Temperature and Process Controller
The CN76030 is a compact DIN-sized controller designed for precise temperature and process control in various industrial applications. It features dual 4-digit LED displays, autotune PID, manual control modes, and multiple input options including thermocouple and RTD sensors. The controller supports scalable voltage and current inputs, ramp and soak functions, alarm capabilities, and optional RS485 communication. Its rugged NEMA rated front panel ensures reliable operation in harsh environments, making it ideal for heating, cooling, and complex process control tasks with advanced features like fault diagnosis and secure password protection.
OMEGA CN76030 Temperature and Process Controller Specifications:
- Inputs: Thermocouple, RTD, voltage or current; ranges vary per input type
- Resolution: Fully scalable with up to 2 decimal places for voltage/current inputs
- Accuracy: +0.25% span +1 digit
- Input Impedance: Thermocouple 3 MΩ min, RTD 200 Ω, voltage 249 Ω
- Sensor Break Protection: De-energizes outputs to protect system
- Loop Break Protection: Error message for shorted or open sensors, break time adjustable from off to 99 minutes
- Display: Dual 4-digit 7-segment LED, process variable in red, setpoint in green
- Control Action: Reverse for heat, direct for cool; selectable for single or dual setpoints
- Control Modes: Time-proportioning, proportional, manual PID, P, PI, PD with anti-windup
- Proportional Band: 6 to 5000°F / equivalent °C, 6 to 9990 for voltage/current inputs
- Integral Time: 0.1 to 99.9 min or off
- Derivative Time: 0.01 to 99.99 min or off
- Cycle Time: 2 to 80 seconds
- Power Supply: 100-240 Vac (+10%-15%), 50-400Hz, single phase; or 132-240 Vdc (+10%-20%)
- Power Consumption: Max. 5 VA
- Dimensions: 48 mm H x 48 mm W x 125 mm D; panel cutout 45 x 45 mm
- Environmental: Operating temp -10°C to 55°C, storage -40°C to 80°C, dust and splash resistant front panel (NEMA 2, 3R, 12)
- Outputs: Mechanical relay (3A/250 Vac), solid-state relay (up to 3.5A), voltage/output, current output, DC pulse
- Alarm: 2 alarms, configurable, 250 Vac resistive load, manual or automatic reset
- Communication: Optional RS485 digital communication, process recorder output (0-10 Vdc)
- Additional Features: Ramp and soak, min/max storage, auto/manual control, security levels, fault diagnosis, non-volatile memory

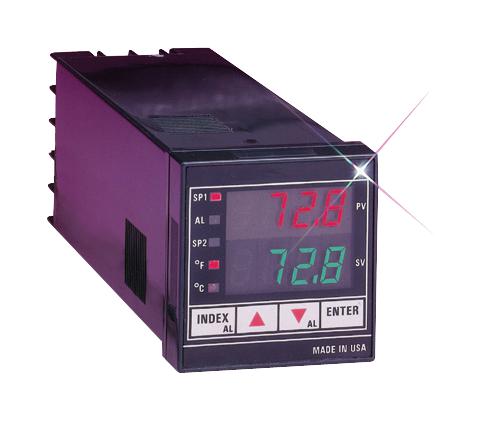

Buy the Omega Series CN76030 Temperature and Process Controller: CN76030
Enhance your industrial control system with the Omega CN76030 controller. Featuring dual displays, autotune PID, multiple input and output options, ramp and soak, alarms, and optional RS485 communication, it offers precise temperature and process management. Its rugged NEMA-rated front panel ensures durability in harsh environments, while programmable security and fault diagnosis enhance reliability. Designed for heating, cooling, and complex process control tasks, this compact device delivers high accuracy, flexibility, and ease of use, making it an essential addition for sophisticated process automation.
Buy Omega CN76030 temperature and process controller now and experience unmatched reliability and advanced control features for industrial applications.
